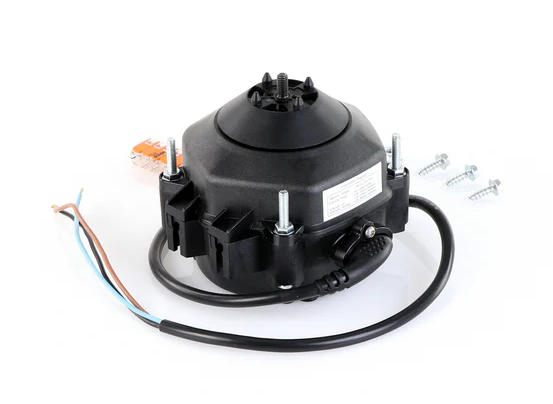

Wellington Refrigeration Motors (HVAC/R) ECR2-0Q91 - 13 Watt - 70-264 V - 1550 RPM - Single phase

Wellington Refrigeration Motors (HVAC/R) ECR2-0Q91 - 13 Watt - 70-264 V - 1550 RPM - Single phase

$118.00 CAD
$118.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : ECR2-0Q91

Brand : Wellington

HVAC : Refrigeration Motors (HVAC/R)

Horsepower : 13 Watt

RPM : 1550

Voltage : 70-264 V

Phase : Single

Mounting : Stud Mount

• Type : ECM
• HP : 13 Watt
• Voltage : 70-264 Vac
• RPM : 1550
• Current (Amp) : 0.19 / 0.10
• Phase : 1
• Rotation : Counterclockwise Shaft End
• Frame : Unit Bearing
• Enclosure : Totally Enclosed Air Over
• Speeds : 1
• Protector : Thermally Protected
• Ambient Temp : -30°C to +50°C
• Service Factor : 1
• Shaft Dimensions : Hubless
• Frequency : 50/60Hz
• Bearings : Ball
• Features : Lyall Plug, IP67 Protection, Energy Saving Motor, Replace Elco Type Motors

• Reference : Wellington ECR01A0241, Wellington ECR01A0242, Wellington ECR01A0122
