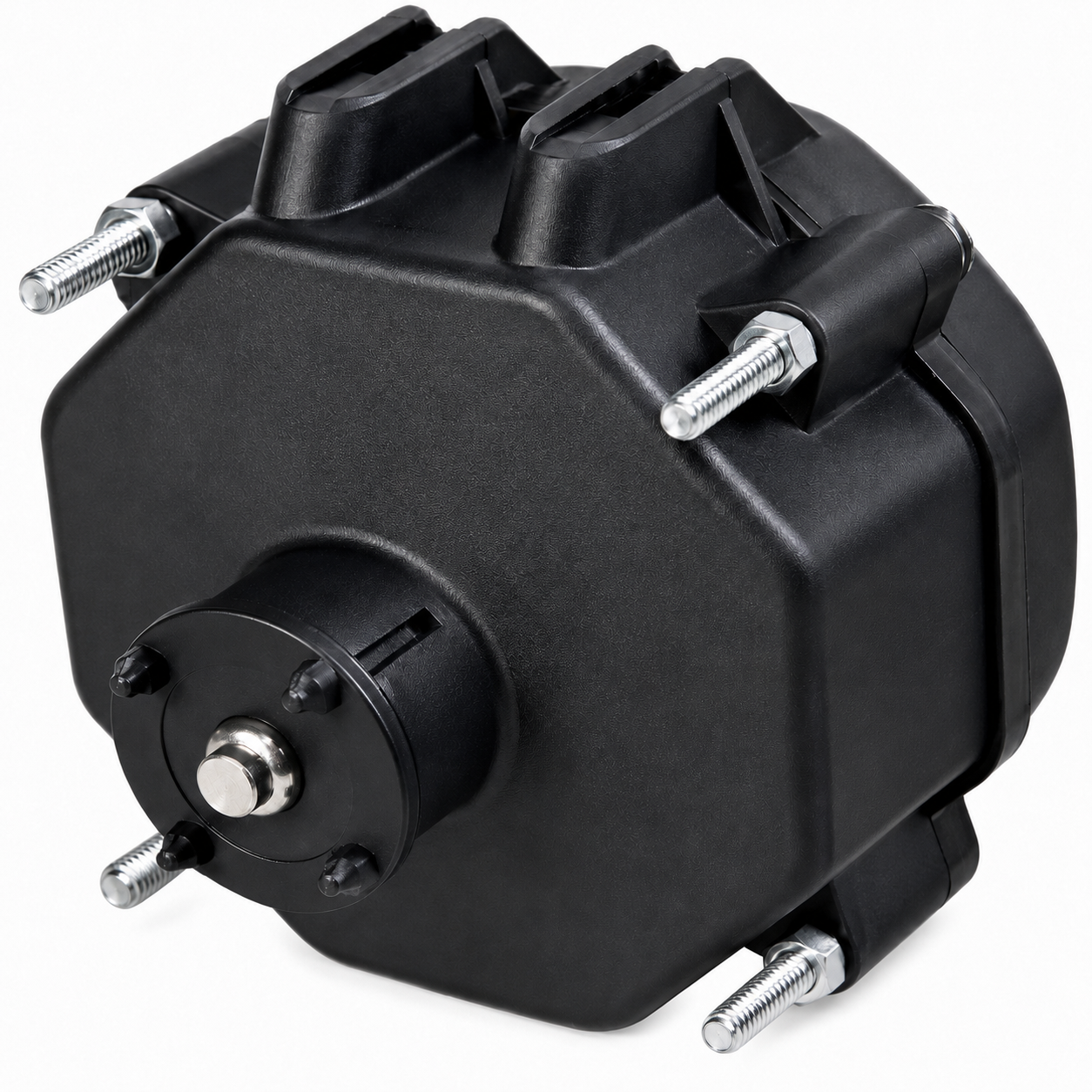

Wellington Refrigeration Motors (HVAC/R) ECR01A0243 - 16 Watt - 115 v - 1550 rpm - Single phase

Wellington Refrigeration Motors (HVAC/R) ECR01A0243 - 16 Watt - 115 v - 1550 rpm - Single phase

$105.00 CAD
$105.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : ECR01A0243

Brand : Wellington

HVAC : Refrigeration Motors (HVAC/R)

Horsepower : 16 Watt

RPM : 1550

Voltage : 115 V

Phase : Single

Mounting : Stud Mount

Type : ECM Refrigeration Motor
HP : 16 Watt
Voltage : 115
RPM : 1550
Current (Amp) : 0.41
Phase : 1
Rotation : Counterclockwise Shaft End
Frame : Unit Bearing
Enclosure : Totally Enclosed Air Over
Speeds : 1
Protector : Thermally Protected
Ambient Temp : 50°C
Service Factor : 1
Shaft Dimensions : Hubless
Frequency : 60Hz
Bearings : Ball
Features : Lyall Plug
ECM Upgrade of Elco Model EC16W115
