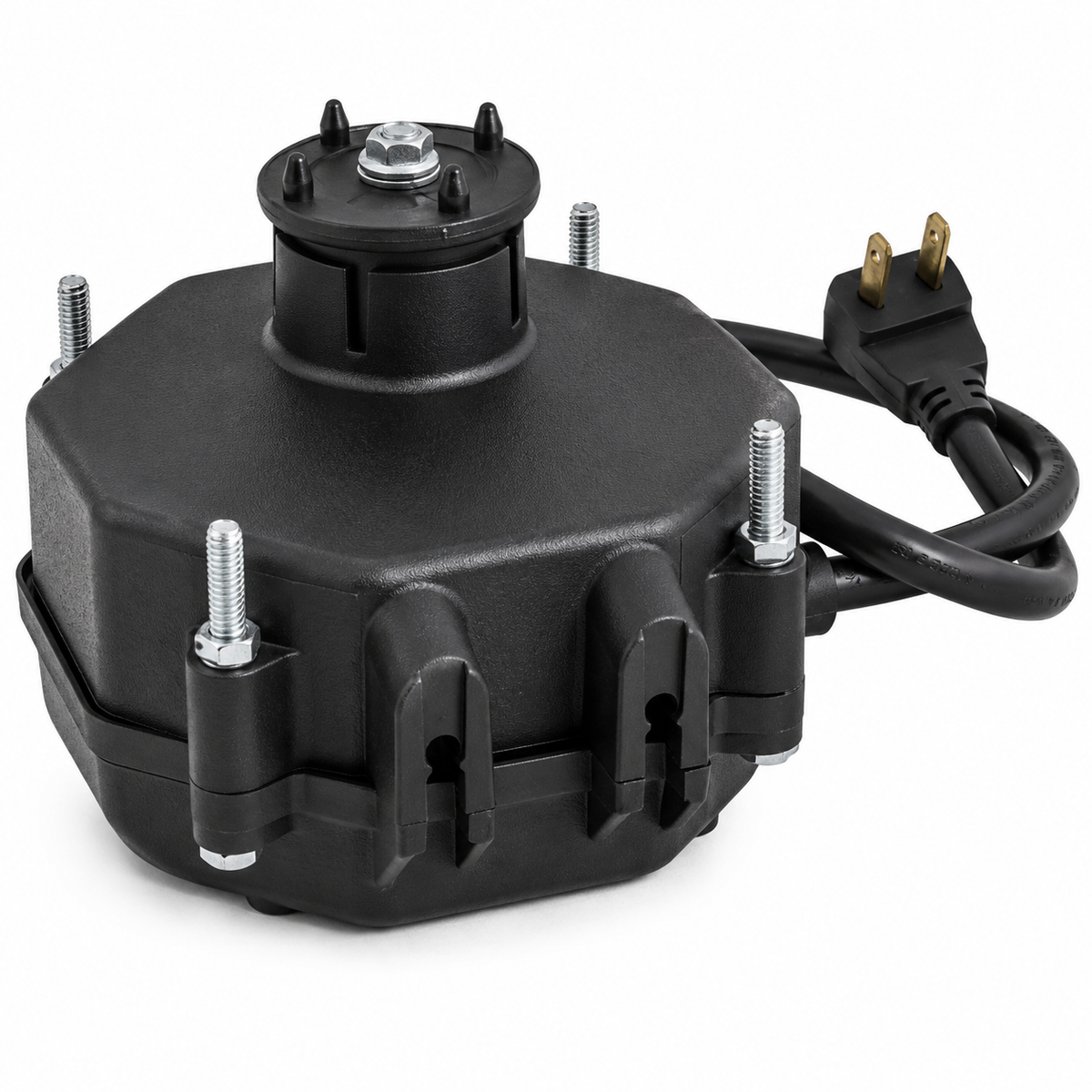

Wellington Refrigeration Motors (HVAC/R) ECR01A0242 - 12 Watt - 115 V - 1550 RPM - Single phase

Wellington Refrigeration Motors (HVAC/R) ECR01A0242 - 12 Watt - 115 V - 1550 RPM - Single phase

$105.00 CAD
$105.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : ECR01A0242

Brand : Wellington

HVAC : Refrigeration Motors (HVAC/R)

Horsepower : 12 Watt

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : Unit Bearing

Mounting : Stud Mount

Type : ECM Refrigeration Motor
HP : 12 Watt
Voltage : 115
RPM : 1550
Current (Amp) : 0.31
Phase : 1
Rotation : Counterclockwise Shaft End
Frame : Unit Bearing
Enclosure : Totally Enclosed Air Over
Speeds : 1
Protector : Thermally Protected
Ambient Temp : 50°C
Service Factor : 1
Shaft Dimensions : Hubless
Frequency : 60Hz
Bearings : Ball
