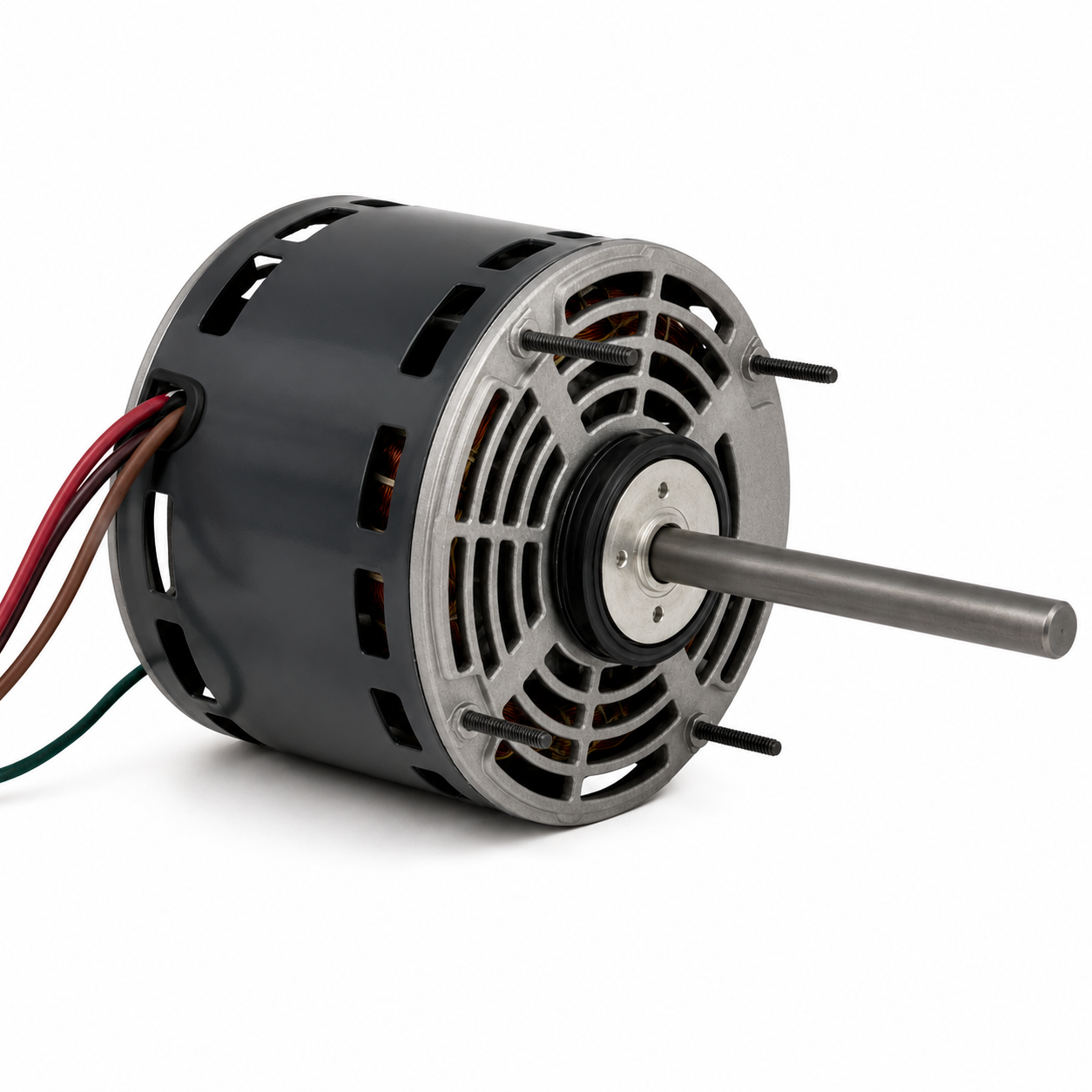

US motorsFan & Blower Motors (HVAC/R) 1391 - 1/4 HP - 208/230 V - 1075 RPM - Single phase

US motorsFan & Blower Motors (HVAC/R) 1391 - 1/4 HP - 208/230 V - 1075 RPM - Single phase

$269.00 CAD
$269.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1391

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 42

Mounting : Ring / Stud Mount

  • Horsepower :1/4
  • Voltage :208/230
  • Amps :1.50
  • RPM :1075
  • Frequency :60 Hz
  • Length :4-7/8”
  • "C" Dim. :8-7/8"
  • Enclosure :Open
  • Shaft Dim. :1/2” x 4.00”
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5.0"
  • Frame :42
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :7.5MFD-370V
  • Feature(s) :Extended Thru-Bolts, Reversing Plug
  • Weight (lbs.) :13
  • Reference : A.O.Smith Century 391 B6507 B6520, General Electric 5KCP29DK8652, Rotom R2391, Universal Electric DE3G033 DE3G033N
