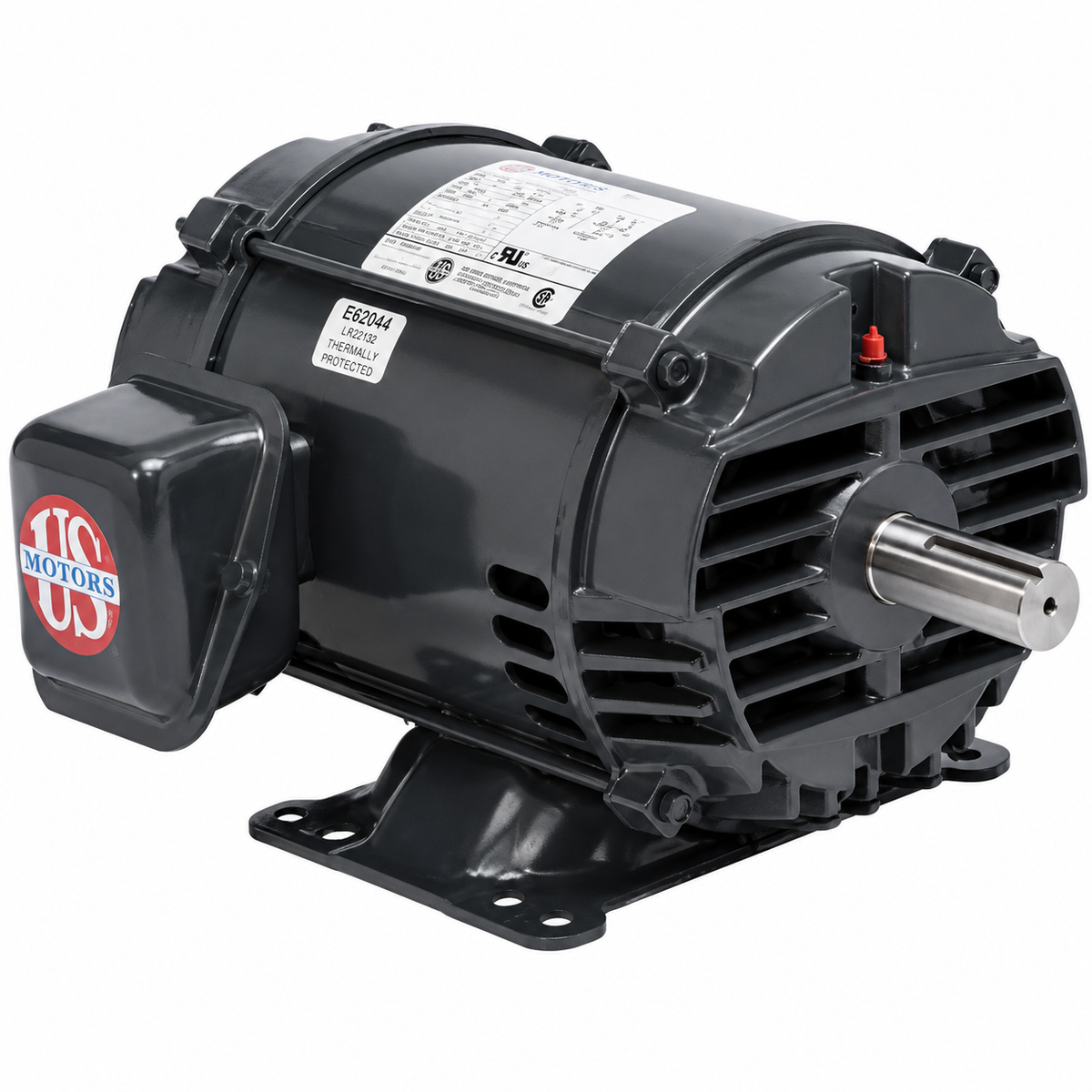

US Motors Three Phase Motor (HVAC/R) D60P2G - 60 HP - 575 V- 1785 RPM - Three phase

US Motors Three Phase Motor (HVAC/R) D60P2G - 60 HP - 575 V- 1785 RPM - Three phase

$4,768.00 CAD
$4,768.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D60P2G

Brand : US Motors

HVAC : Three Phase Motor (HVAC/R)

Horsepower : 60 HP

RPM : 1785

Voltage : 575 V

Phase : Three

Frame : 364T

Mounting : Rigid Base

  • Horsepower :60
  • Voltage :575
  • Amps :55
  • RPM :1785
  • Frequency :60 Hz
  • "C" Dim. :28.63"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :2.38" x 6.13"
  • Type :Three Phase
  • Speeds :1
  • Frame :364T
  • Efficiency :95%
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Rigid Base, Class 'F' Insulation - Class 'B' Rise at Service Factor, F-1 Assembly, Cast Iron Frame & End Brackets, Suitable for use with Inverters (VFD), Double Shielded Bearings, Regreasable Bearings, Lifting Provisions
  • Weight (lbs.) :580
