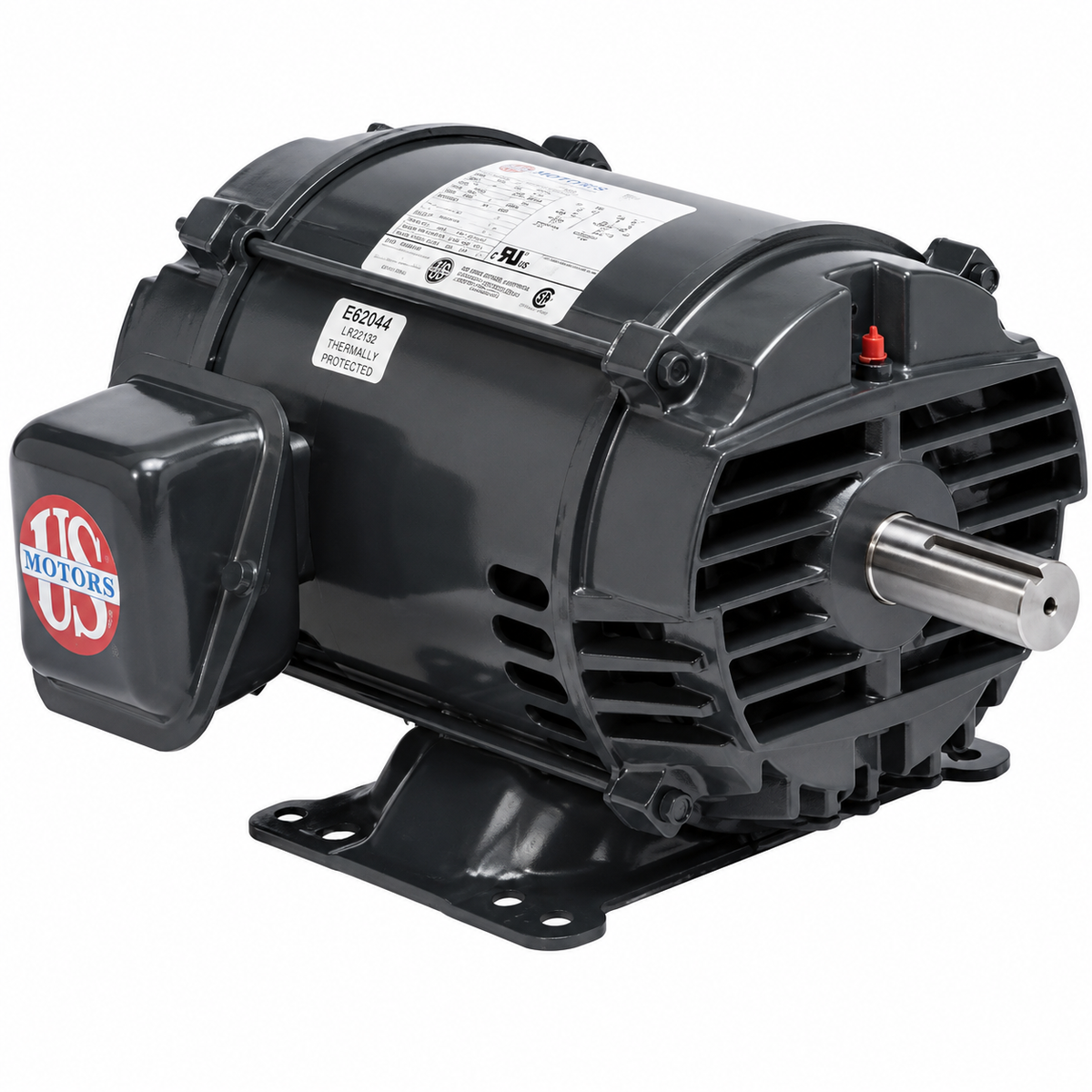

US Motors Three Phase Motor (HVAC/R) D3P2H - 3 HP - 200 V - 1770 RPM - Three phase

US Motors Three Phase Motor (HVAC/R) D3P2H - 3 HP - 200 V - 1770 RPM - Three phase

$534.00 CAD
$534.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D3P2H

Brand : US Motors

HVAC : Three Phase Motor (HVAC/R)

Horsepower : 3 HP

RPM : 1770

Voltage : 200 V

Phase : Three

Frame : 182T

Mounting : Rigid Base

  • Horsepower :3
  • Voltage :200
  • Amps :9
  • RPM :1770
  • Frequency :60 Hz
  • "C" Dim. :13.69"
  • Enclosure :ODP
  • Shaft Dim. :1-1/8" x 2-3/4"
  • Type :Three Phase
  • Frame :182T
  • Bearings :Ball
  • Rotation :Reversible
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Weight (lbs.) :50
