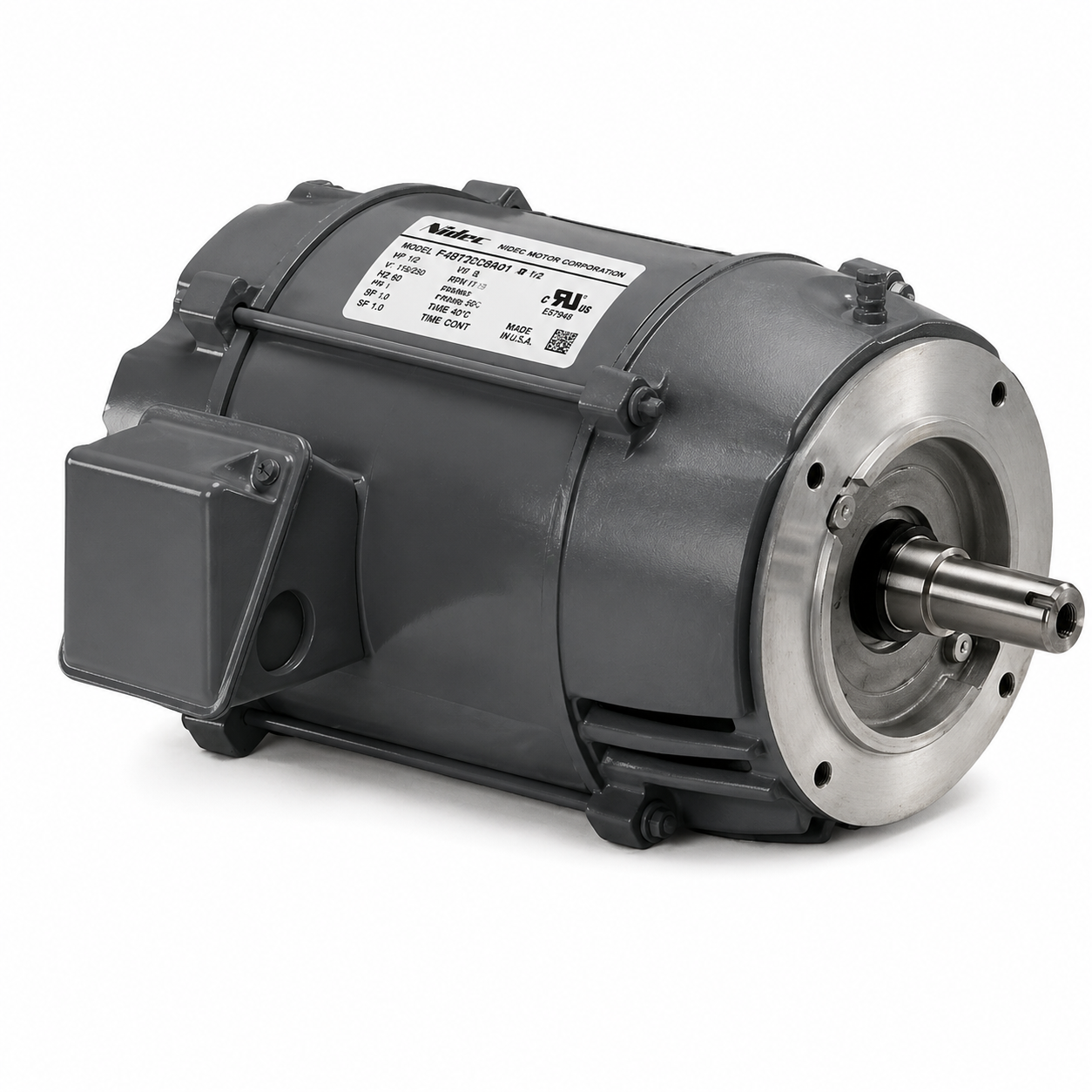

US Motors Three Phase Motor (HVAC/R) D34P2ACR - 1.5 HP - 575 V - 1725 RPM - Three pgase

US Motors Three Phase Motor (HVAC/R) D34P2ACR - 1.5 HP - 575 V - 1725 RPM - Three pgase

$336.00 CAD
$336.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D34P2ACR

Brand : US Motors

HVAC : Three Phase Motor (HVAC/R)

Horsepower : 1.5 HP

RPM : 1725

Voltage : 575 V

Phase : Three

Frame : 56H

Mounting : C-Face Mount

• HP: 1.5
• Voltage: 575
• RPM: 1725
• Current (Amp): 1.70
• Phase: 3
• Rotation: Reversible
• Frame: 56H
• Enclosure: Open Drip Proof
• Speeds: 1
• Protector: No Protection
• Ambient Temp: 40°C
• Service Factor: 1.15
• Shaft Dimensions: 0.625 in x 1.88 in
• Frequency: 60Hz
• Diameter: 6.5 in
• Frame Length: 13.86 in
• Bearings: Ball
• Features: Class B Insulation, Rigid Base Mount, Rolled Steel Frame
