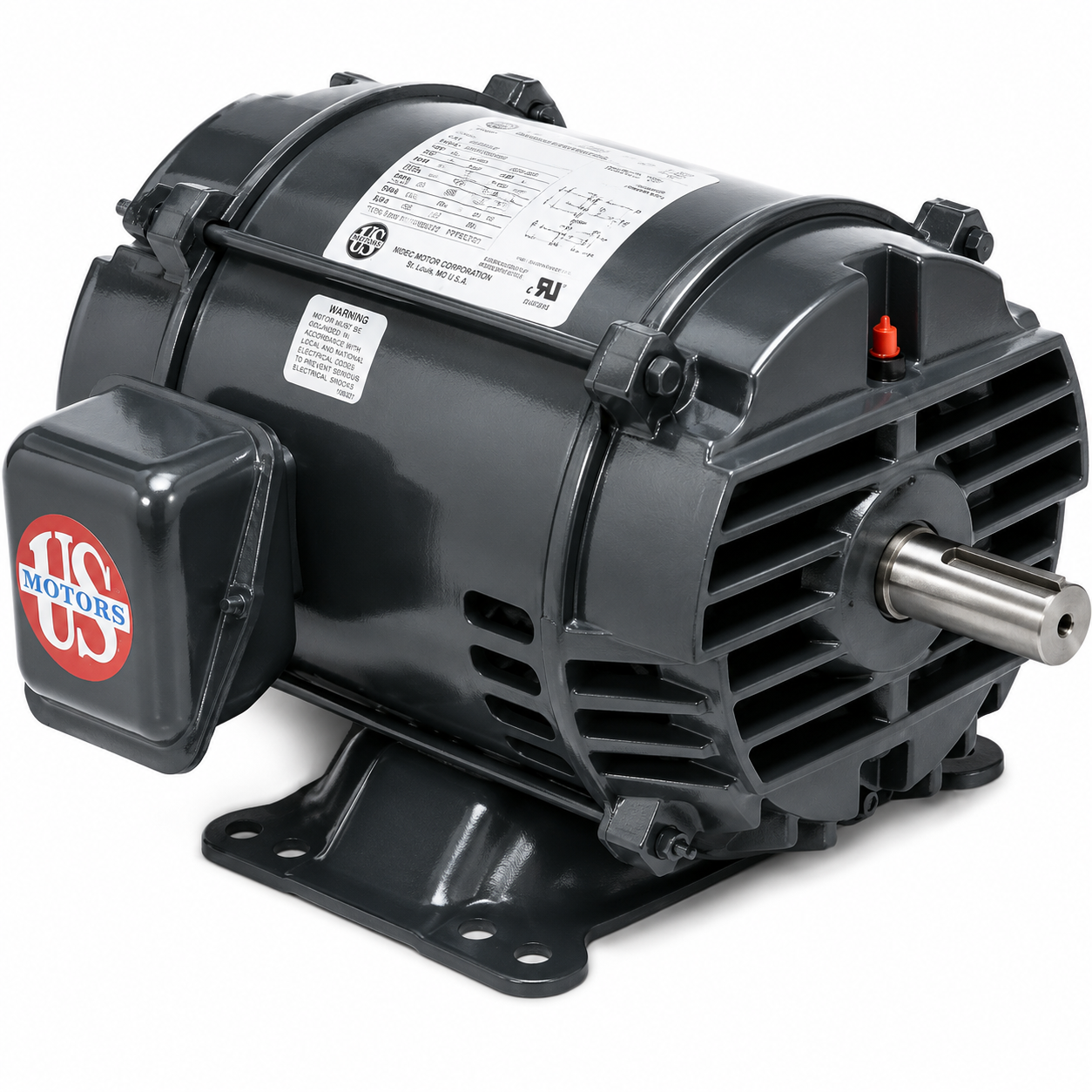

US Motors Three Phase Motor (HVAC/R) D20P2D - 20 HP - 208-230/460 V - 1800 RPM - Three phase

US Motors Three Phase Motor (HVAC/R) D20P2D - 20 HP - 208-230/460 V - 1800 RPM - Three phase

$1,869.00 CAD
$1,869.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D20P2D

Brand : US Motors

HVAC : Three Phase Motor (HVAC/R)

Horsepower : 20 HP

RPM : 1800

Voltage : 208-230/460 V

Phase : Three

Frame : 256T

Mounting : Rigid Base

  • Horsepower :20
  • Voltage :208-230/460
  • Amps :54.00-49.00/24.40
  • RPM :1800
  • Frequency :60 Hz
  • "C" Dim. :23.19"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :1-5/8" x 3-3/4"
  • Type :Three Phase
  • Speeds :1
  • Frame :256T
  • Efficiency :93.0%
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Rigid Base, Class 'F' Insulation - Class 'B' Rise at Service Factor, F-1 Assembly, Aluminum End-Shields with Steel Inserts, Light Weight Rolled Steel Frame, Suitable for use with Inverters (VFD), Double Shielded Bearings, Regreasable Bearings, Lifting Provisions
  • Weight (lbs.) :160
