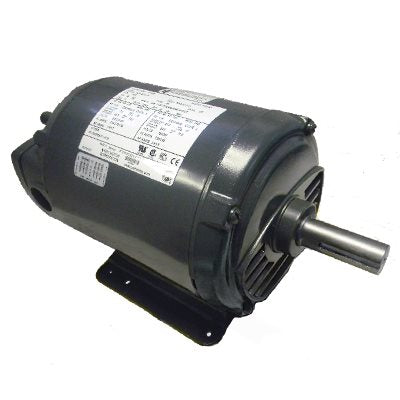

US Motors Three Phase Motor (HVAC/R) D1P2G - 1 HP - 575 V - 1800 RPM - Three phase

US Motors Three Phase Motor (HVAC/R) D1P2G - 1 HP - 575 V - 1800 RPM - Three phase

$390.00 CAD
$390.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D1P2G

Brand : US Motors

HVAC : Three Phase Motor (HVAC/R)

Horsepower : 1 HP

RPM : 1800

Voltage : 575 V

Phase : Three

Frame : 143T

Mounting : Rigid Base

  • Horsepower :1
  • Voltage :575
  • Amps :1.30
  • RPM :1800
  • Frequency :60 Hz
  • "C" Dim. :12-3/4"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :7/8" x 2-5/16"
  • Type :Three Phase
  • Speeds :1
  • Frame :143T
  • Efficiency :85.5%
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Rigid Base, Class 'F' Insulation - Class 'B' Rise at Service Factor, F-1 Assembly, Aluminum End-Shields with Steel Inserts, Light Weight Rolled Steel Frame, Suitable for use with Inverters (VFD), Double Shielded Bearings
  • Weight (lbs.) :35
