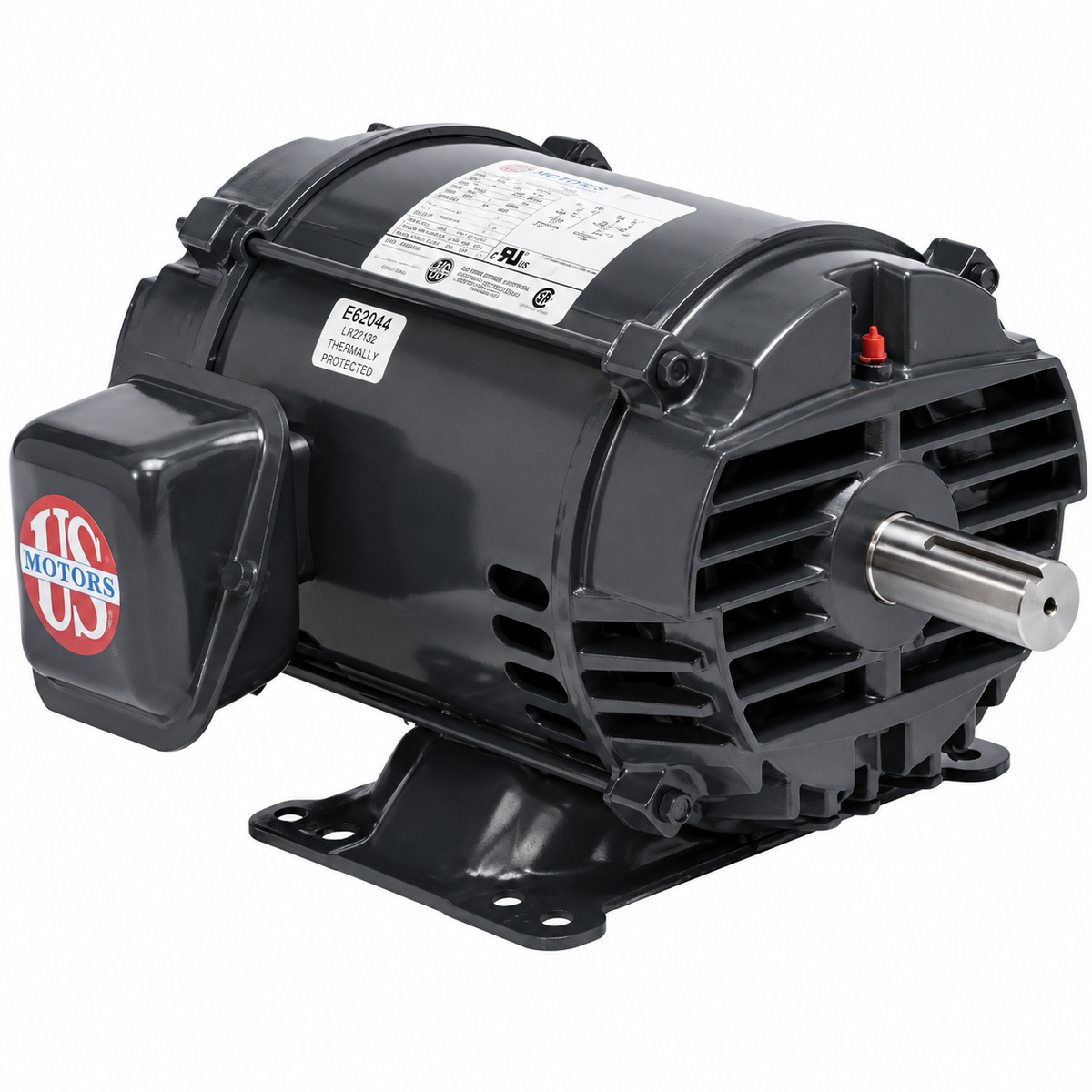

US Motors Three Phase Motor (HVAC/R) D40P2G - 40 HP - 575 V - 1800 RPM - Three phase

US Motors Three Phase Motor (HVAC/R) D40P2G - 40 HP - 575 V - 1800 RPM - Three phase

$3,362.00 CAD
$3,362.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D40P2G

Brand : US Motors

HVAC : Three Phase Motor (HVAC/R)

Horsepower : 40 HP

RPM : 1800

Voltage : 575 V

Phase : Three

Frame : 324T

Mounting : Rigid Base

  • Horsepower :40
  • Voltage :575
  • Amps :37.00
  • RPM :1800
  • Frequency :60 HZ
  • Length :21-5/8"
  • "C" Dim. :27-1/4"
  • Enclosure :Open Drip Proof
  • Shaft Dim. :2-1/8" x 5.00"
  • Type :Three Phase
  • Speeds :1
  • Frame :324T
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Rigid Base Mounting Base, Class 'F' Insulation, 94.50% Efficiency
  • Weight (lbs.) : 385
