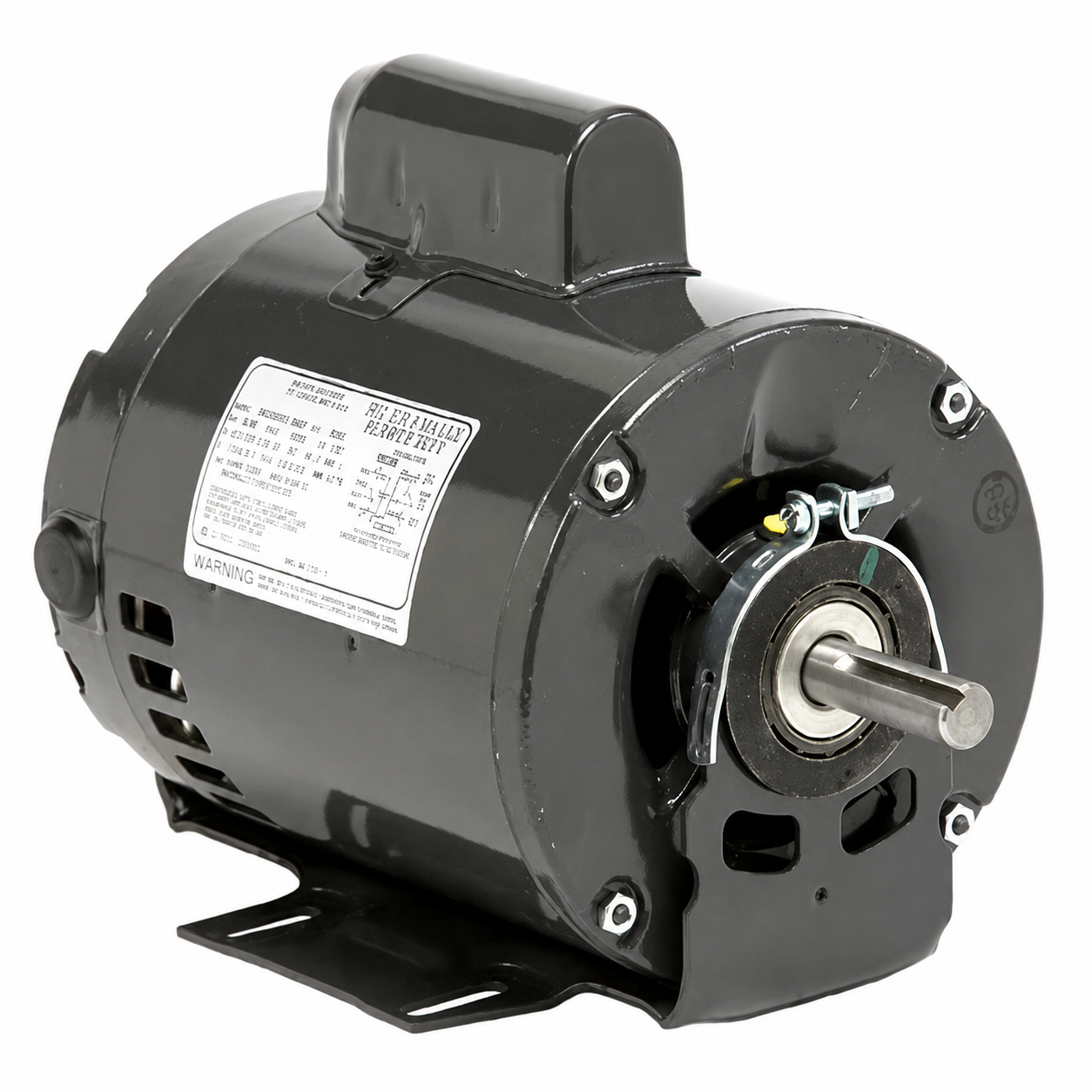

US Motors Single Phase Motor (HVAC/R) D34CPA2PH9 - 3/4 HP - 115/230 V - 1725 RPM - Single phase

US Motors Single Phase Motor (HVAC/R) D34CPA2PH9 - 3/4 HP - 115/230 V - 1725 RPM - Single phase

$373.00 CAD
$373.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D34CPA2PH9

Brand : US Motors

HVAC : Single Phase Motor (HVAC/R)

Horsepower : 3/4 HP

RPM : 1725

Voltage : 115/230 V

Phase : Single

Frame : 56H

Mounting : Resilient Base

  • Horsepower :3/4
  • Voltage :115/230
  • Amps :7.0/3.5
  • RPM :1725
  • Frequency :60 Hz
  • "C" Dim. :11.785"
  • Enclosure :ODP
  • Shaft Dim. :5/8" x 1-7/8"
  • Type :Cap Start Cap Run
  • Frame :56H
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.25
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :29
  • Model: T063CNU2158012B
