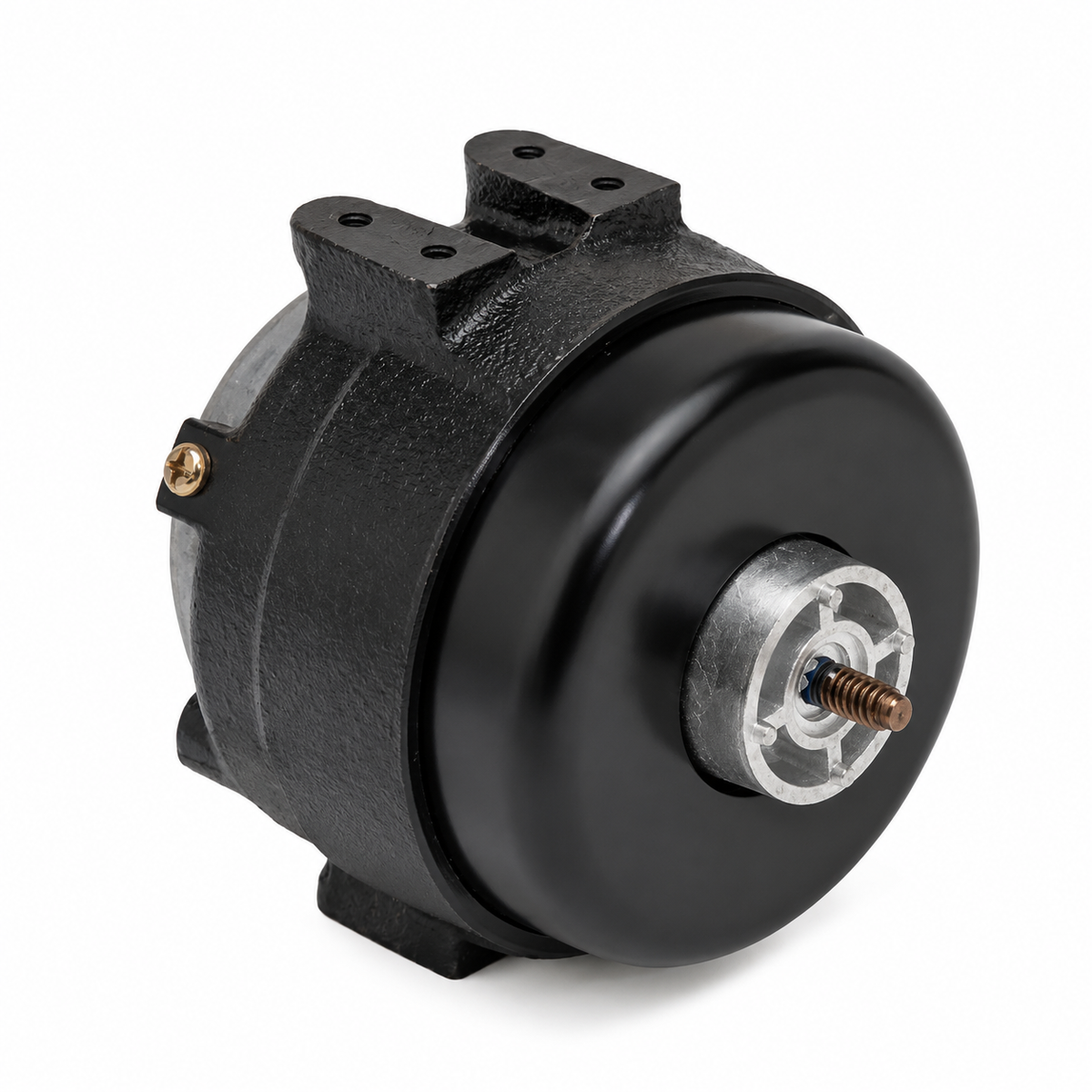

Us Motors Refrigeration Motors (HVAC/R) 2124 - 25 Watt - 115 V - 1550 RPM - Single phase

• HP : 25 W
• Voltage : 115
• RPM : 1550
• Current (Amp) : 1.10
• Phase : 1
• Rotation : Counterclockwise Lead End
• Frame : Unit Bearing
• Enclosure : Totally Enclosed Air Over
• Speeds : 1
• Protector : Thermally Protected
• Ambient Temp : 40°C
• CFM :
• Service Factor : 1.00
• Shaft Dimensions : 0.25 in X 20 THD X 0.50 in
• Frequency : 60Hz
• Diameter : 3.9 in
• Frame Length : 4.50 in
• Bearings : Sleeve
• Features : Class B Insulation, 11 Tapped Holes Mount, 24" Leads With Molded Strain Relief, 1/4 x 20 Threaded Shaft, Included The Following : Vibration Dampener Hub Washer, Speed Nut, And 4 Mounting Screws
• Reference : Century 251, A.O. Smith UB25CCH, Fasco D571
