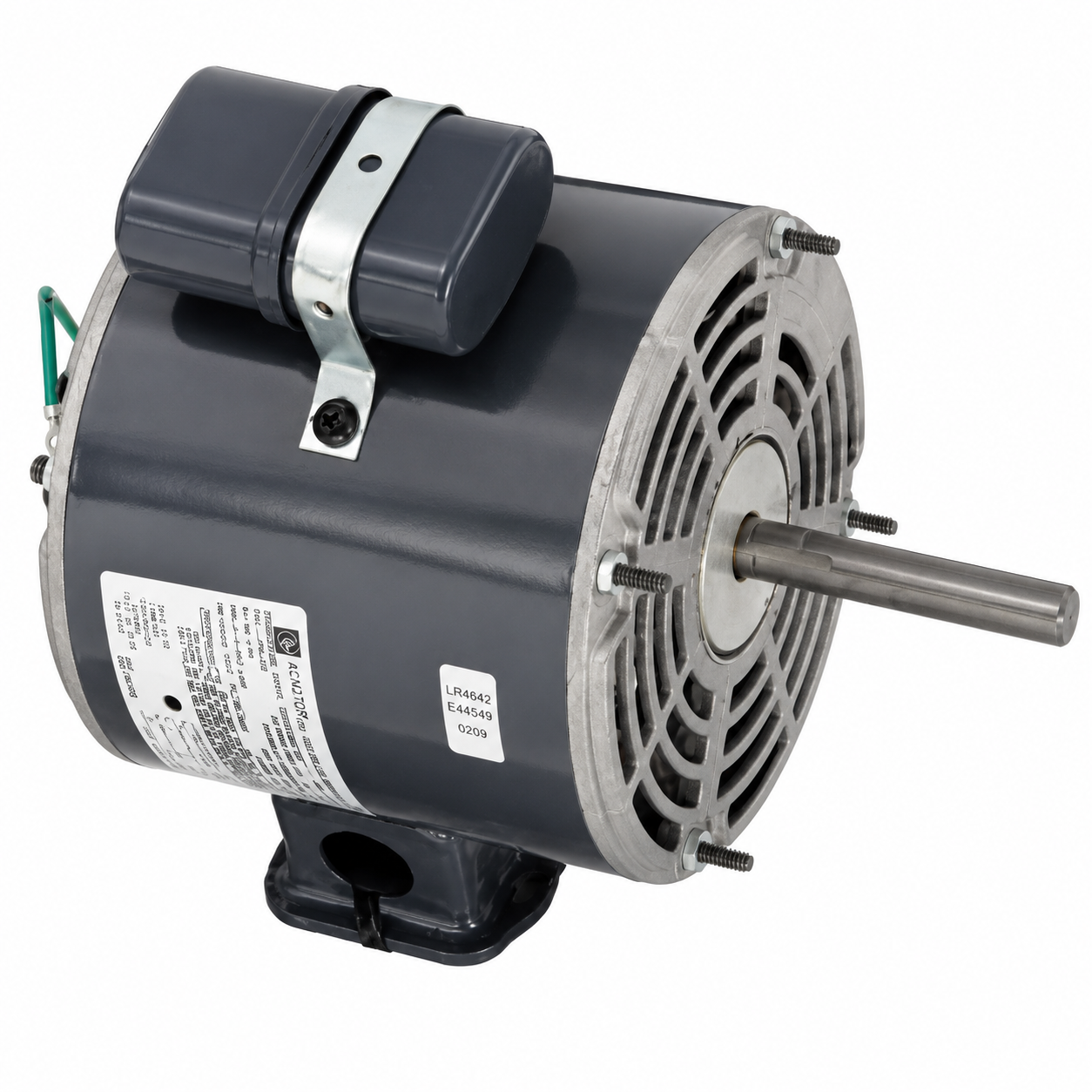

US Motors OEM Replacement Motors (HVAC/R) 644 - 1/2 HP - 208/230 V - 1725 RPM - Single phase

US Motors OEM Replacement Motors (HVAC/R) 644 - 1/2 HP - 208/230 V - 1725 RPM - Single phase

$428.00 CAD
$428.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 644

Brand : US Motors

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1725

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Stud Mount

  • Horsepower :1/2
  • Voltage :208/230
  • Amps :2.70
  • RPM :1725
  • Frequency :50/60 Hz
  • Length :5.56"
  • "C" Dim. :9.06"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :1/2" x 3.50"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5.60"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :CWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5.0MFD-370V
  • Feature(s) :Class 'B' Insulation, Conduit Box, Stud Mounting
  • Weight (lbs.) :15
  • Reference : Century OHS9983, Emerson K55HXSME1644, General Electric 5KCP39KGU003 , U.S. Motors Model: K055SME1644673B
