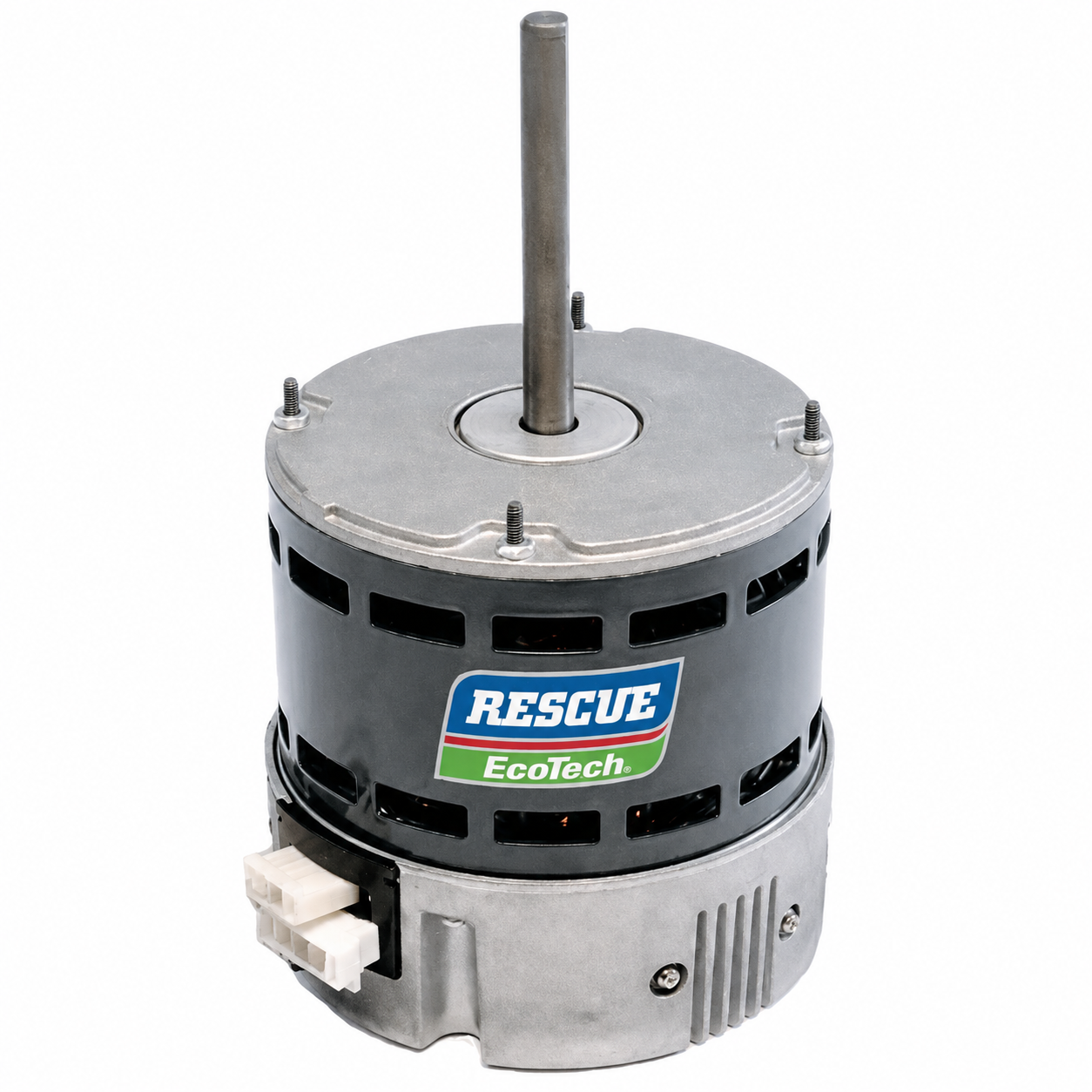

US Motors ECM Motors (HVAC/R) 8420PS - 1/3 HP - 115/230 V - 1800 RPM - Single phase

US Motors ECM Motors (HVAC/R) 8420PS - 1/3 HP - 115/230 V - 1800 RPM - Single phase

$619.00 CAD
$619.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 8420PS

Brand : US Motors

HVAC : ECM Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1800

Voltage : 115/208-230 V

Phase : Single

Frame : 48Y

Mounting : Belly Band Mount

  • Horsepower :1/3
  • Voltage :115/208-230-277
  • Amps :4.4/2.8-2.7-2.4 & 4.4/2.8-2.6-2.4
  • RPM :300-1800
  • Frequency :50/60 Hz
  • "C" Dim. :2.653"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" x 4-1/2"
  • Type :ECM
  • Speeds :1
  • Frame :48Y
  • Bearings :Ball
  • Rotation :CCWLE
  • Protector :Electronically
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :9
