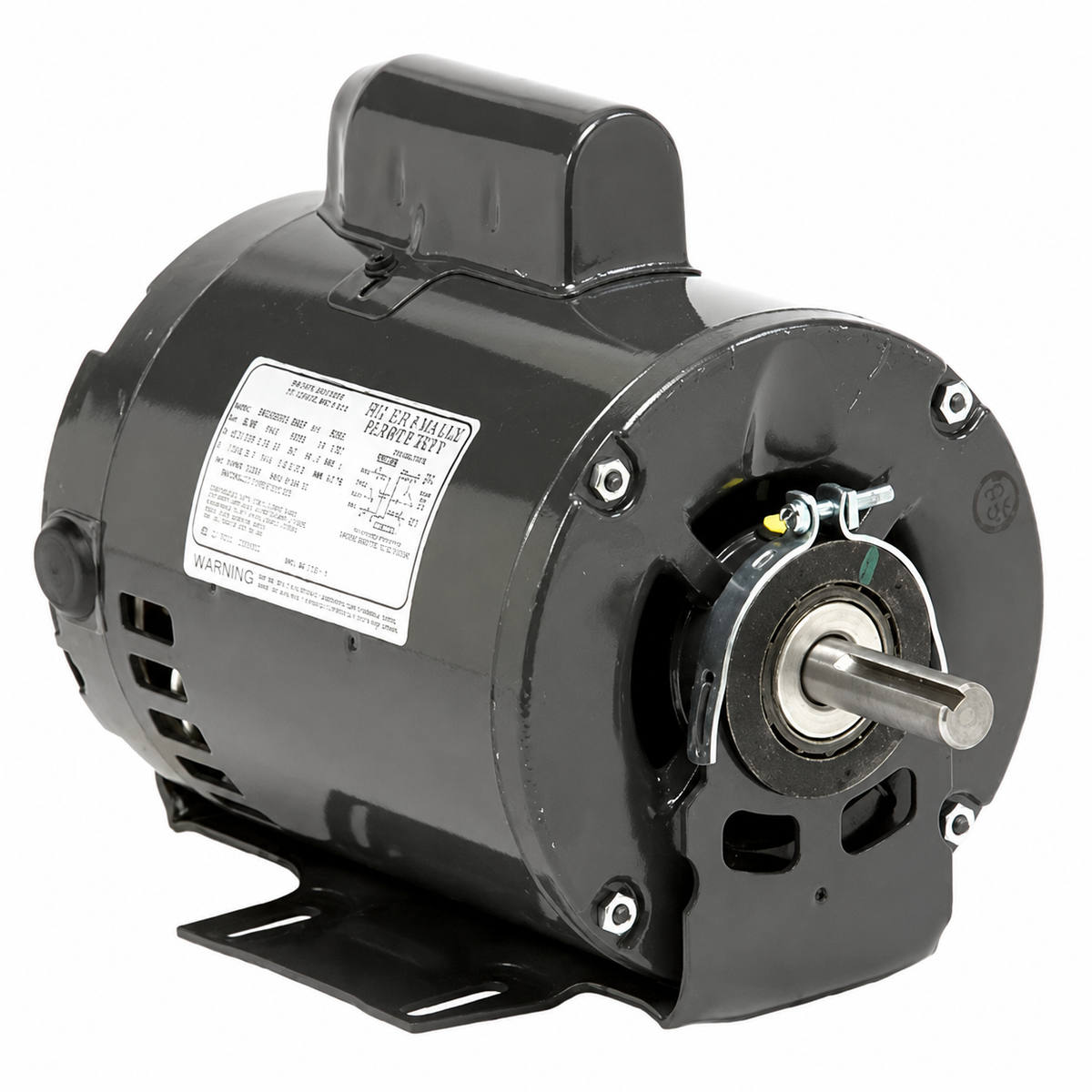

US Motors Belted Fan Motors (HVAC/R) 4242 - 1.5 HP - 115/230 V - 1725 RPM - Single phase

US Motors Belted Fan Motors (HVAC/R) 4242 - 1.5 HP - 115/230 V - 1725 RPM - Single phase

$599.00 CAD
$599.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 4242

Brand : US Motors

HVAC : Belted Fan Motors (HVAC/R)

Horsepower : 1.5 HP

RPM : 1725

Voltage : 115/230 V

Phase : Single

Frame : 56

Mounting : Resilient Base

  • Horsepower :1.5
  • Voltage :115/230
  • Amps :22.40/11.20
  • RPM :1725
  • Frequency :60 Hz
  • "C" Dim. :12-3/4”
  • Enclosure :Open Drip-Proof
  • Type :Capacitor Start
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.15
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Resilient Base, Class 'A' Insulation, High Starting Torque
  • Weight (lbs.) :40
