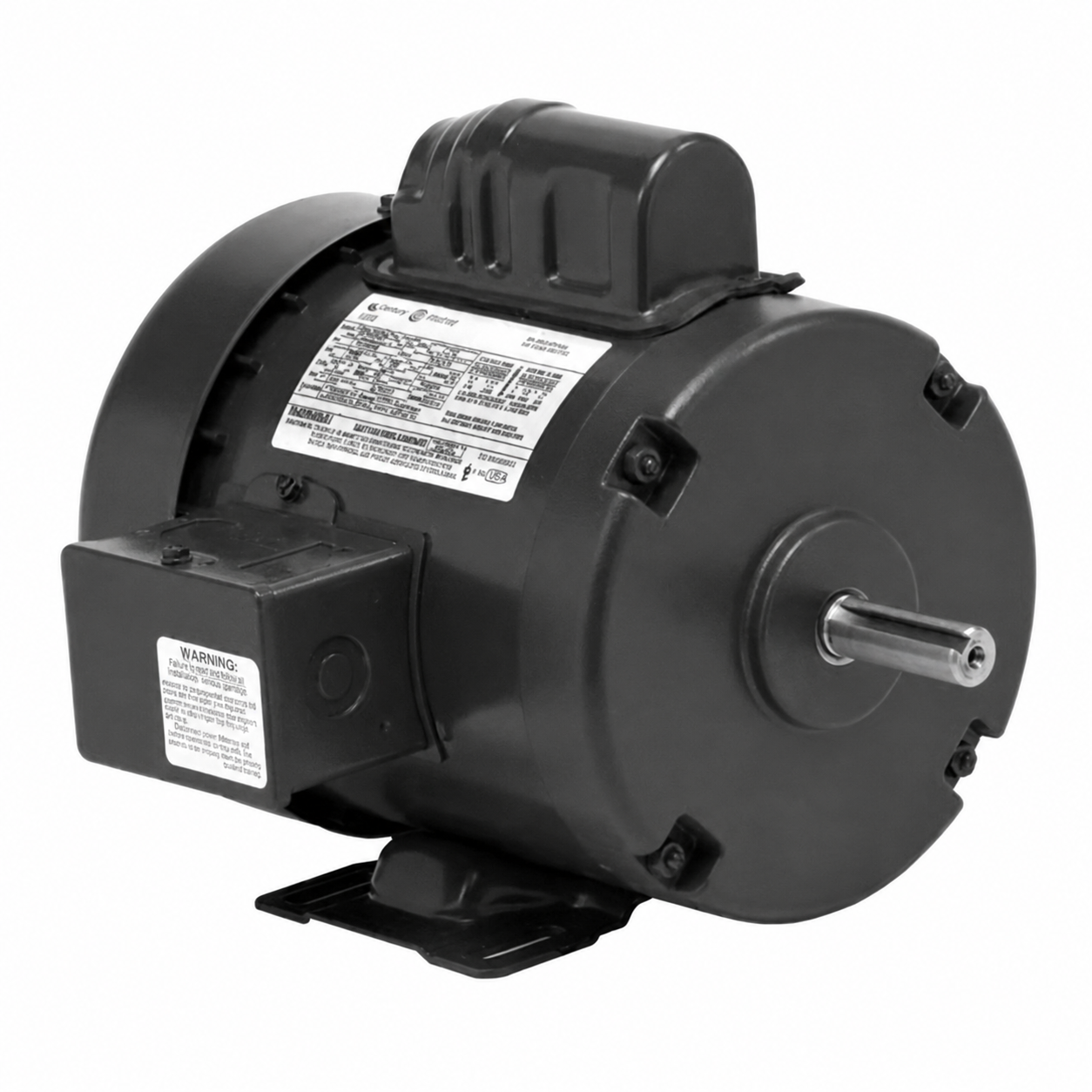

US Motors General Purpose Motors (HVAC/R) T34C3JH - 3/4 HP - 1140 RPM - 115/208-230 V - Single phase

US Motors General Purpose Motors (HVAC/R) T34C3JH - 3/4 HP - 1140 RPM - 115/208-230 V - Single phase

$485.00 CAD
$485.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : T34C3JH

Brand : US Motors

HVAC : General Purpose Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1140

Voltage : 115/208-230 V

Phase : Single

Frame : 56H

Mounting : Rigid Base

  • Horsepower :3/4
  • Voltage :115/208-230
  • Amps :10.6/5.4-5.3
  • RPM :1140
  • "C" Dim. :13.38"
  • Enclosure :Totally Enclosed
  • Shaft Dim. :5/8" X 1 7/8"
  • Type :Capacitor Start
  • Speeds :1
  • Frame :56H
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :1
  • Capacitor Rating :12.5MFD-370V
  • Feature(s) :Rigid Base
  • Weight (lbs.) :39
