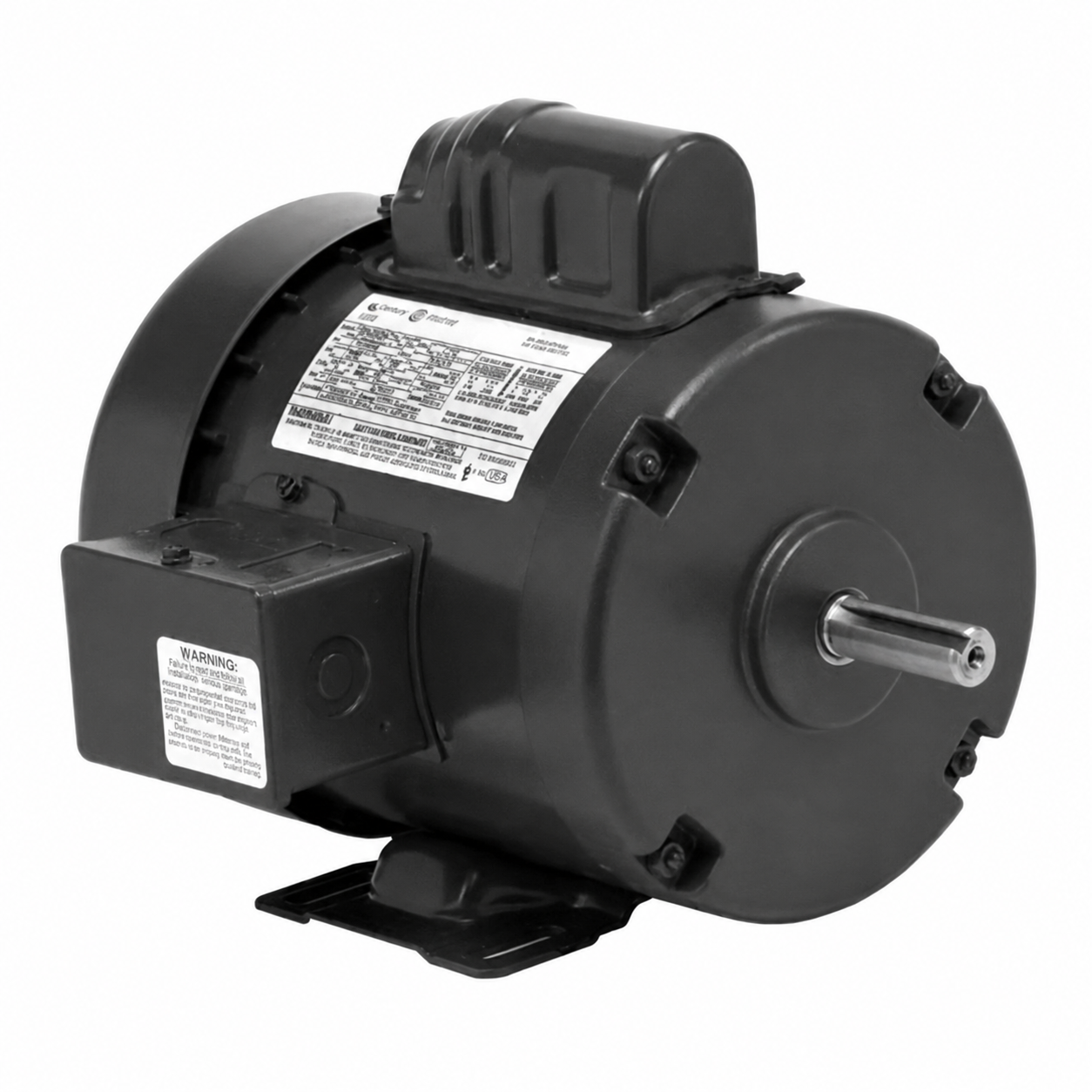

US Motors General Purpose Motors (HVAC/R) T2CM1J14 - 2 HP - 115/208-230 V - 3450 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) T2CM1J14 - 2 HP - 115/208-230 V - 3450 RPM - Single phase

$573.00 CAD
$573.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : T2CM1J14

Brand : US Motors

HVAC : General Purpose Motors (HVAC/R)

Horsepower : 2 HP

RPM : 3450

Voltage : 115/208-230 V

Phase : Single

Frame : 145T

Mounting : Rigid Base

• HP: 2
• Voltage: 115 / 208-230
• RPM: 3450
• Current (Amp): 19.50 / 10.8-9.70
• Phase: 1
• Rotation: Reversible
• Frame: 145T
• Enclosure: Totally Enclosed Fan Cooled
• Speeds: 1
• Protector: Manual
• Ambient Temp: 40°C
• CFM: N/A
• Service Factor: 1.15
• Shaft Dimensions: 0.875 in X 2.12 in
• Frequency: 60Hz
• Diameter: 6.5 in
• Frame Length: 13.80 in
• Bearings: Ball
• Features: class b insulation, rigid base, 7/8" diameter keyed shaf
