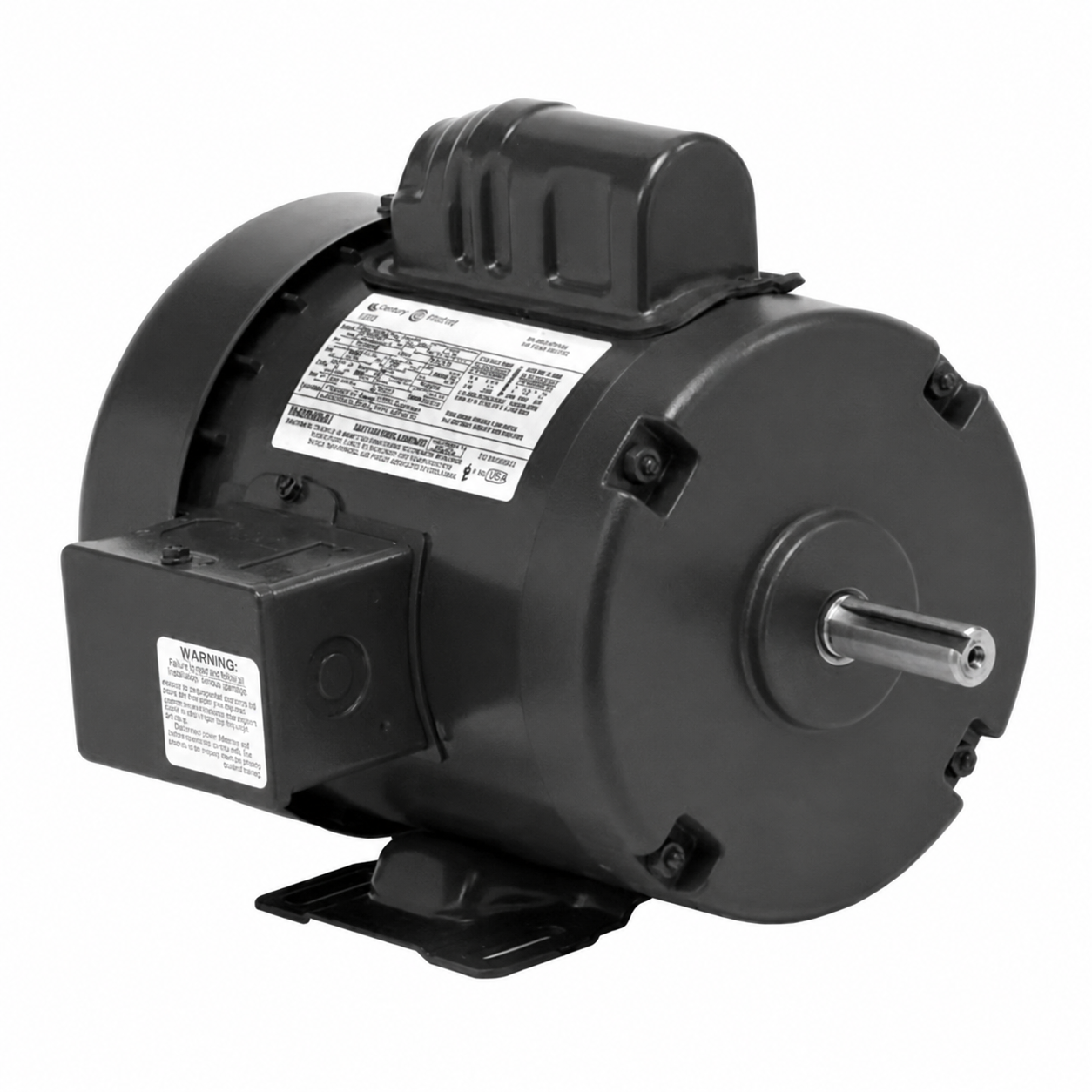

US Motors General Purpose Motors (HVAC/R) T14CM2J4 - 1/4 HP - 115/208-230 V - 1725 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) T14CM2J4 - 1/4 HP - 115/208-230 V - 1725 RPM - Single phase

$251.00 CAD
$251.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : T14CM2J4

Brand : US Motors

HVAC : General Purpose Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1725

Voltage : 115/208-230 V

Phase : Single

Frame : 48

Mounting : Rigid Base

  • Horsepower :1/4
  • Voltage :115/208-230
  • Amps :6.6/2.9-3.3
  • RPM :1725
  • Frequency :60 Hz
  • "C" Dim. :10.28"
  • Enclosure :Totally Enclosed Fan Cooled
  • Shaft Dim. :1/2" x 1.50"
  • Type :Capacitor Start
  • Speeds :1
  • Diameter :5.5"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Manual
  • Service Factor :1.15
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, Rigid Base
  • Weight (lbs.) :22
