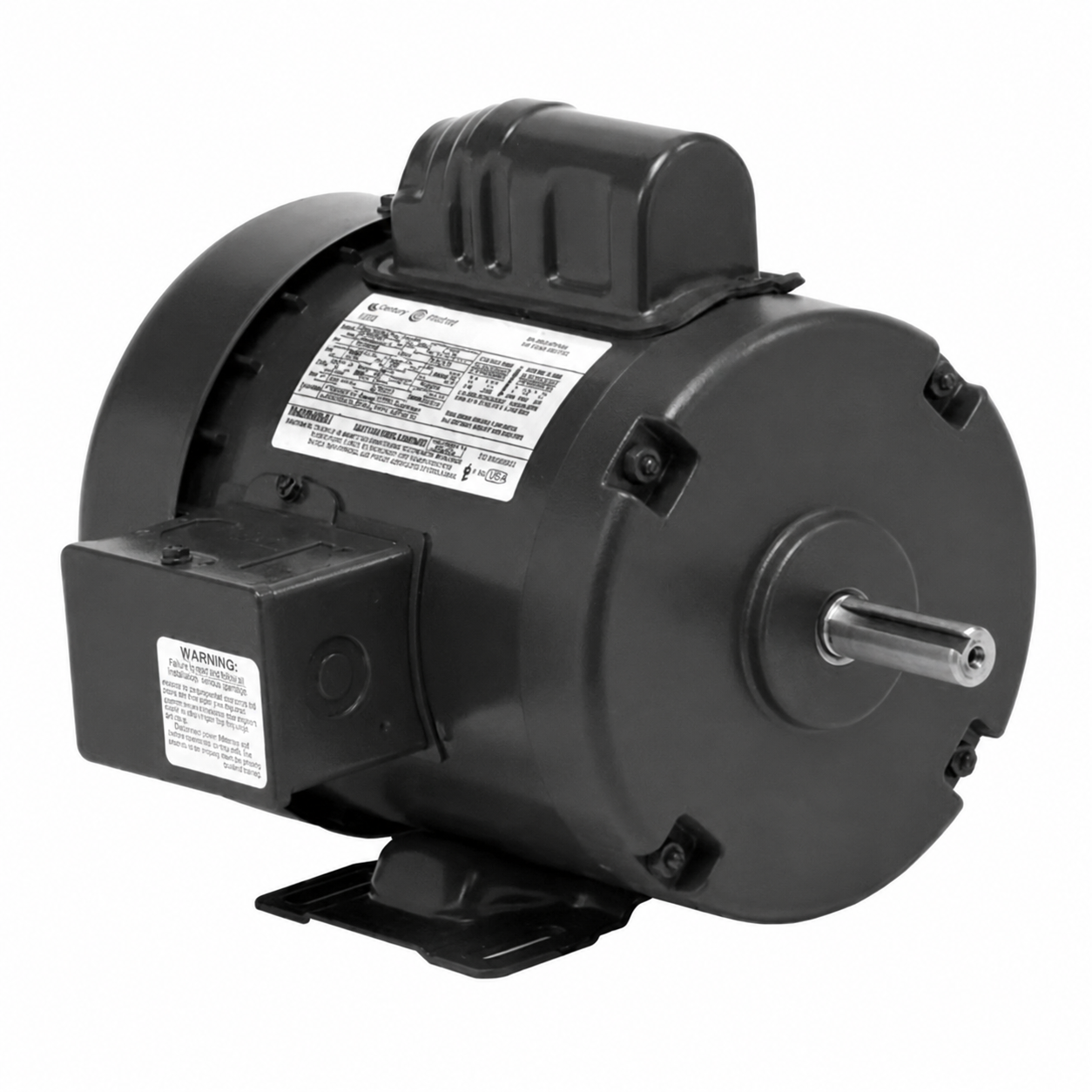

US Motors General Purpose Motors (HVAC/R) T12C3J - 1/2 HP - 1200 RPM - 115/208-230 V - Single phase

US Motors General Purpose Motors (HVAC/R) T12C3J - 1/2 HP - 1200 RPM - 115/208-230 V - Single phase

$423.00 CAD
$423.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : T12C3J

Brand : US Motors

HVAC : General Purpose Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1200

Voltage : 115/208-230 V

Phase : Single

Frame : 56

Mounting : Rigid Base

  • Horsepower :1/2
  • Voltage :115/208-230
  • Amps :10.40/5.10-5.20
  • RPM :1200
  • Frequency :60 Hz
  • "C" Dim. :11-3/8"
  • Enclosure :Totally Enclosed Fan Cooled
  • Shaft Dim. :5/8" x 1-15/16"
  • Type :Capacitor Start
  • Speeds :1
  • Frame :56
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation
  • Weight (lbs.) :32
