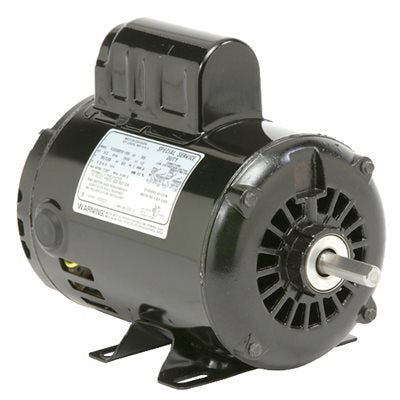

US Motors General Purpose Motors (HVAC/R) D2C2P18 - 2 HP - 115/230 V - 1725 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) D2C2P18 - 2 HP - 115/230 V - 1725 RPM - Single phase

$893.00 CAD
$893.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D2C2P18

Brand : US Motors

HVAC : General Purpose Motors (HVAC/R)

Horsepower : 2 HP

RPM : 1725

Voltage : 115/230 V

Phase : Single

Frame : 182T

Mounting : Rigid Base

• HP: 2
• Voltage: 115 / 230
• RPM: 1725
• Current (Amp): 23.20 / 11.60
• Phase: 1
• Rotation: Reversible
• Frame: 182T
• Enclosure: Open Drip Proof
• Speeds: 1
• Protector: No Protection
• Ambient Temp: 40°C
• CFM: N/A
• Service Factor: 1.15
• Shaft Dimensions: 1.125 in X 2.69 in
• Frequency: 60Hz
• Diameter: 8.5 in
• Frame Length: 14.80 in
• Bearings: Ball
• Features: class f insulation, rigid base mount, 1-1/8" diameter keyed shaft
