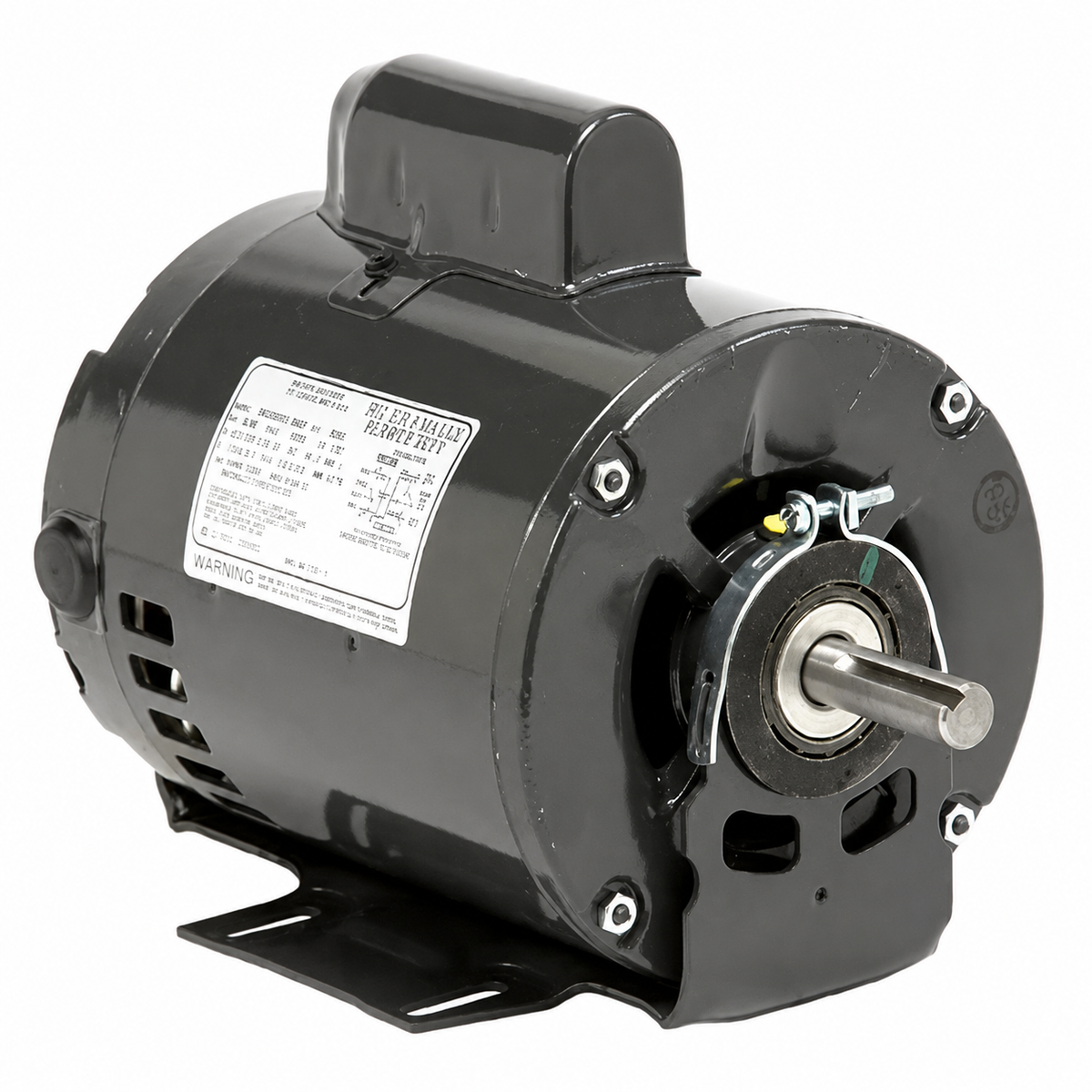

US Motors General Purpose Motors (HVAC/R) D1CPA2PH - 1 HP - 115/208-230 V - 1725 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) D1CPA2PH - 1 HP - 115/208-230 V - 1725 RPM - Single phase

$349.00 CAD
$349.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D1CPA2PH9

Brand : US Motors

HVAC : General Purpose Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1725

Voltage : 115/208-230 V

Phase : Single

Frame : 56H

Mounting : Resilient Base

  • Horsepower :1
  • Voltage :115/208-230
  • Amps :8.8/4.4
  • RPM :1725
  • Frequency :60 Hz
  • "C" Dim. :13.32"
  • Enclosure :Open Drip Proof
  • Shaft Dim. :5/8" x 1-7/8"
  • Type :Capacitor Start
  • Frame :56H
  • Bearings :Ball
  • Rotation :Reversible
  • Service Factor :1.15
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :31
