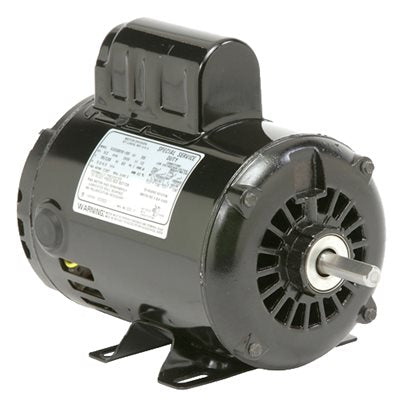

US Motors General Purpose Motors (HVAC/R) D1C2J14 - 1 HP - 115/208-230 V - 1725 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) D1C2J14 - 1 HP - 115/208-230 V - 1725 RPM - Single phase

$369.00 CAD
$369.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D1C2J14

Brand : US Motors

HVAC : General Purpose Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1725

Voltage : 115/208-230 V

Phase : Single

Frame : 143T

Mounting : Rigid Base

  • Horsepower :1
  • Voltage :115/208-230
  • Amps :14.8/7.5-7.3
  • RPM :1725
  • Frequency :60 HZ
  • "C" Dim. :12.25"
  • Enclosure :ODP
  • Shaft Dim. :7/8" X 2 1/4"
  • Type :Capacitor Start
  • Frame :143T
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :32
