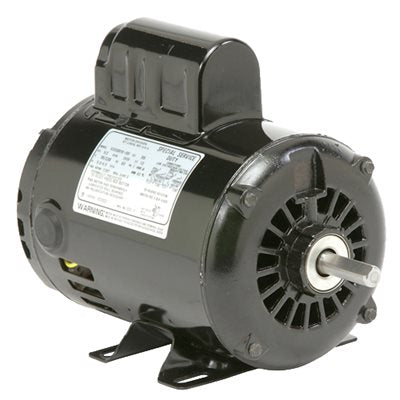

US Motors General Purpose Motors (HVAC/R) D12CPA2P49 - 1/2 HP - 115/230 V - 1725 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) D12CPA2P49 - 1/2 HP - 115/230 V - 1725 RPM - Single phase

$314.00 CAD
$314.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D12CPA2P49

Brand : US Motors

HVAC : General Purpose Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1725

Voltage : 115/230 V

Phase : Single

Frame : 48

Mounting : Resilient Base

  • Horsepower :1/2
  • Voltage :115/230
  • Amps :5.0/2.6
  • RPM :1725
  • Frequency :60 Hz
  • "C" Dim. :9.94"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :1/2" x 1 1/2"
  • Type :Single Phase
  • Speeds :1
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.25
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :30MFD-370V
  • Feature(s) :Capacitor Start, Resilient Base
  • Weight (lbs.) :14
