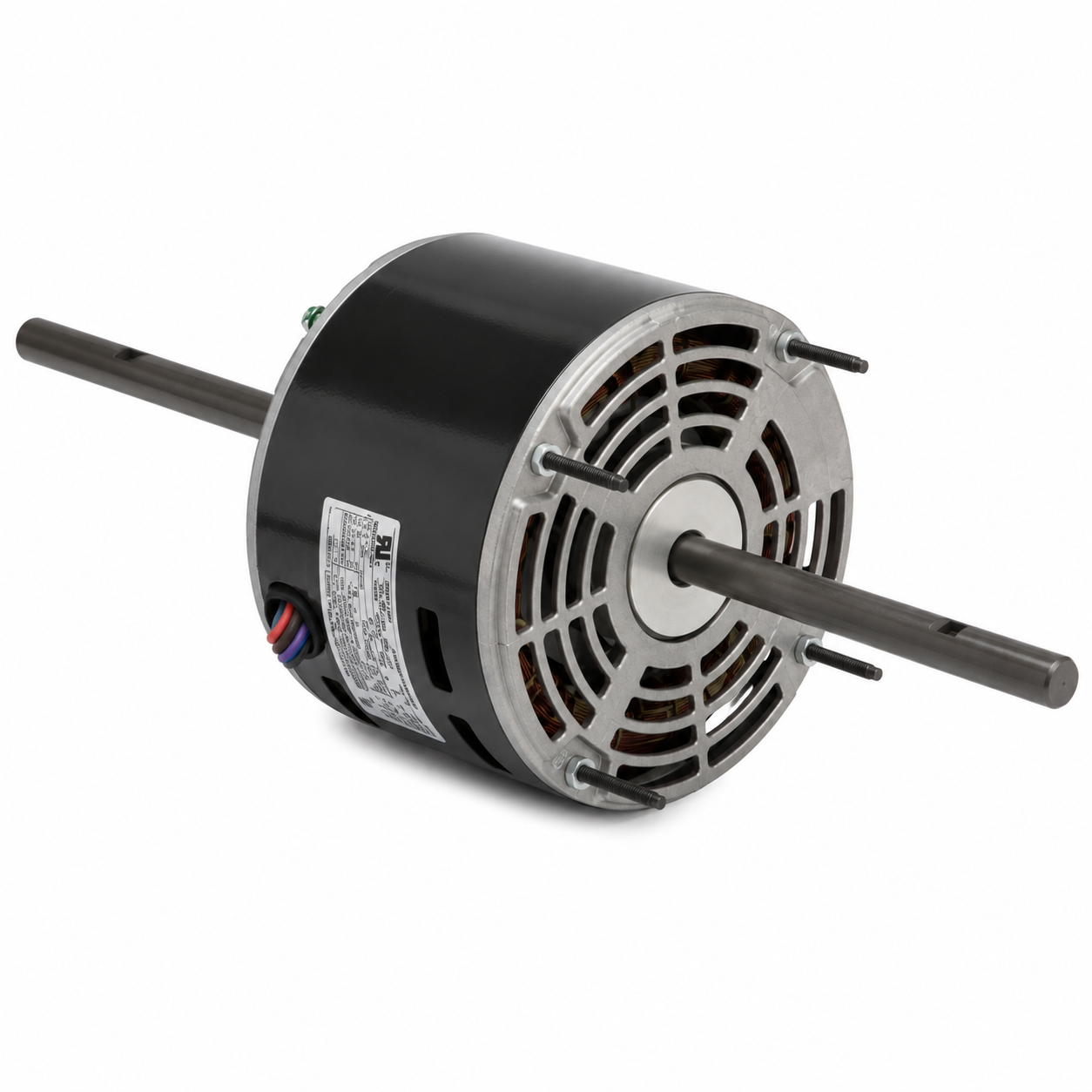

US Motors Fan Coil Motors (HVAC/R) NA1074 - 3/4 HP 208/230 V - 1625 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NA1074 - 3/4 HP 208/230 V - 1625 RPM - Single phase

$337.00 CAD
$337.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : NA1074

Brand : US Motors

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1625

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Hub / Stud Mount

  • Horsepower :3/4
  • Voltage :208-230
  • Amps :4.0
  • RPM :1625
  • "C" Dim. :22.0"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :8.2" X 1/2" X 8.2"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :7.5MFD-370V
  • Feature(s) :Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) :18
  • Reference : A.O. Smith 482, Century RA1074, Dayton 4MA71, Emerson K55HXRJL2170, Fasco D778, General Electric 3898, Rotom R62778
