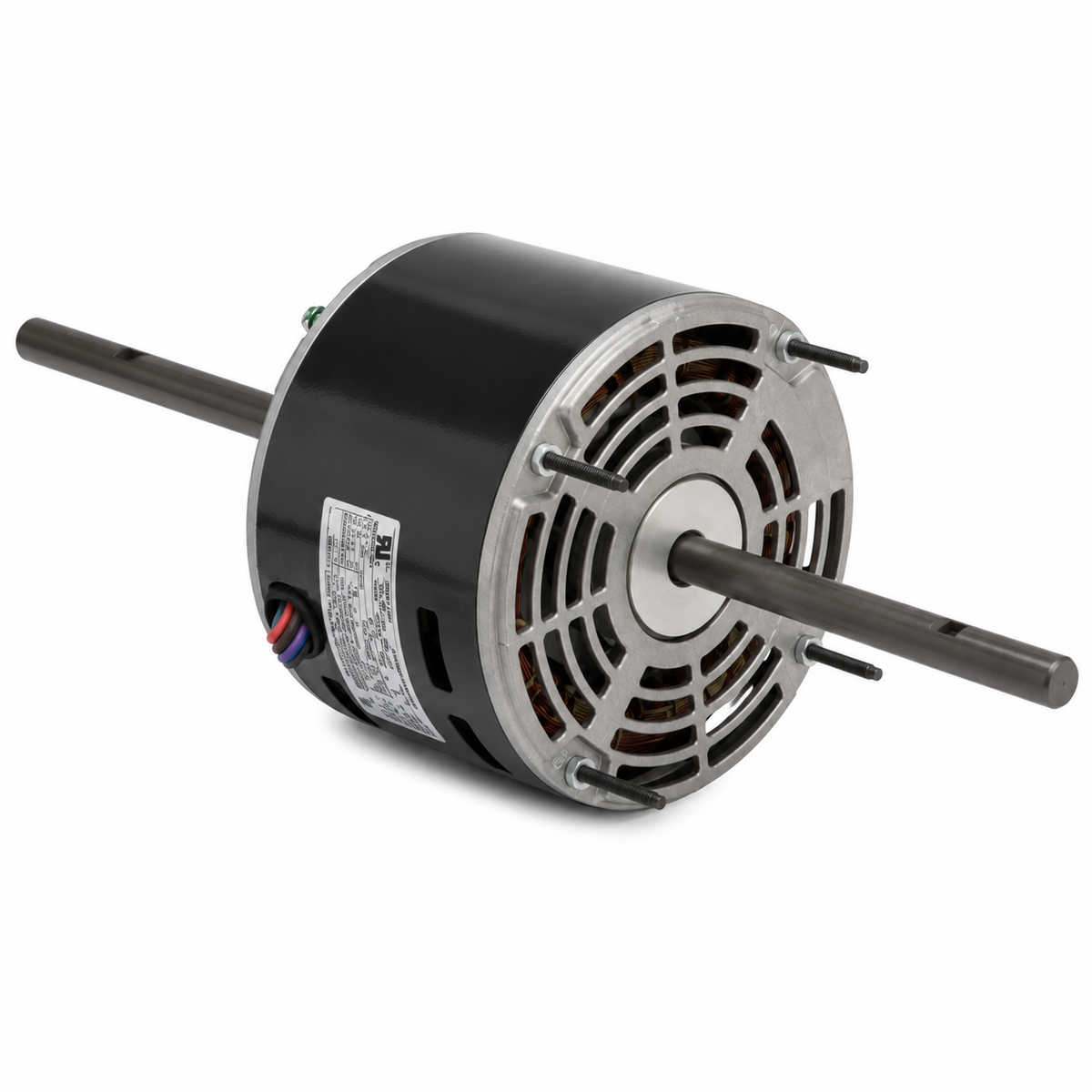

US Motors Fan Coil Motors (HVAC/R) NA1054 - 1/2 HP - 208/230 V - 1625 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NA1054 - 1/2 HP - 208/230 V - 1625 RPM - Single phase

$289.00 CAD
$289.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : NA1054

Brand : US Motors

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1625

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Hub / Stud Mount

  • Horsepower :1/2
  • Voltage :208-230
  • Amps :4.3
  • RPM :1625
  • "C" Dim. :22.0"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :8.5" X 1/2" X 8.5"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5MFD-370V
  • Feature(s) :Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) :17
  • Reference : A.O. Smith F48C18A02, Carrier P257X057, Century RA1054, Emerson K55HXRJJ2167, Fasco D772, Franklin Bluffton 8744260121 8744460121, General Electric 3892, Marathon X058, Rotom R62173.
