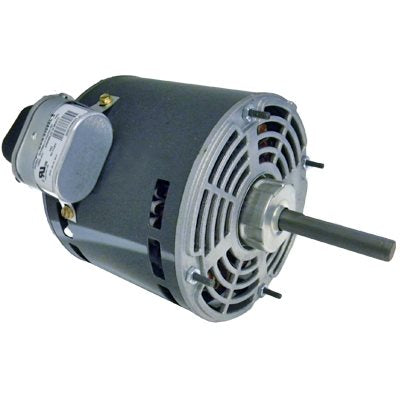

US Motors Fan & Blower Motors (HVAC/R) SS34201U - 1/5 HP - 575 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) SS34201U - 1/5 HP - 575 V - 1075 RPM - Single phase

$332.00 CAD
$332.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS34201U

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 15 HP

RPM : 1075

Voltage : 575 V

Phase : Single

Frame : 48

Mounting : Hex Hub / Stud Mount

  • Horsepower :1/5
  • Voltage :575
  • Amps :0.80
  • RPM :1075
  • Frequency :60 Hz
  • Length :4-3/4"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :1/2" x 2-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :CCWSE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :4MFD-370VAC
  • Feature(s) :No Base, Class 'B' Insulation
  • Weight (lbs.) :13
