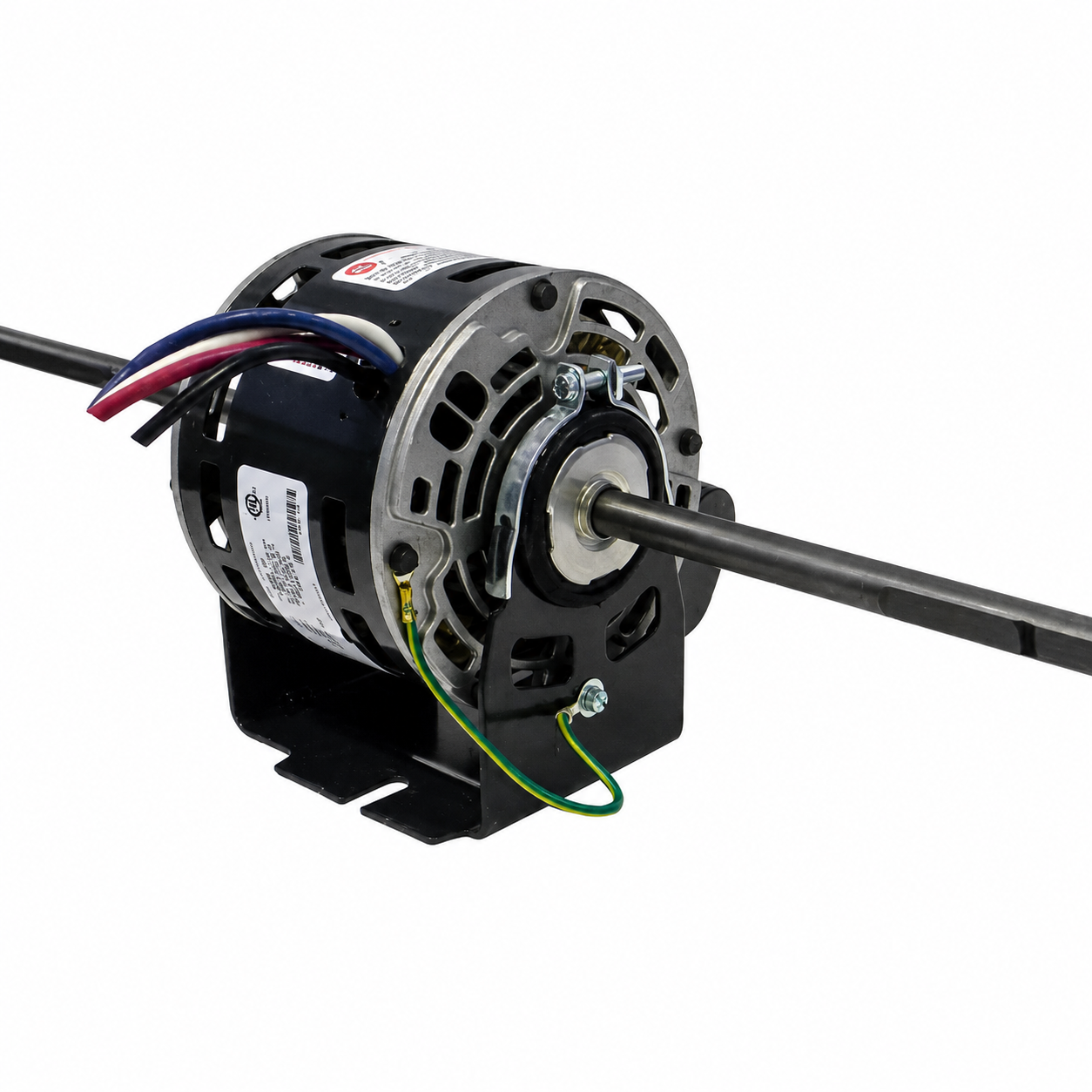

US Motors Fan & Blower Motors (HVAC/R) 8525 - 1/6 HP - 115 V - 1625 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 8525 - 1/6 HP - 115 V - 1625 RPM - Single phase

$359.00 CAD
$359.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 8525

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 1625

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Resilient Base

  • Horsepower :1/6
  • Voltage :115
  • Amps :2.2
  • RPM :1625
  • "C" Dim. :24.0"
  • Enclosure :Open Air Over
  • Shaft Dim. :9.4" X 1/2" X 9.4"
  • Type :Permanent Split Capacitor
  • Speeds :4
  • Frame :42
  • Bearings :Self Aligning Bearings
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5MFD-370V
  • Feature(s) :Double Shaft, Class 'B' Insulation, Capacitor Included, Resilient Mounting Rings Included, Base
  • Weight (lbs.) :9
  • Reference : Century 748, Fasco D221A
