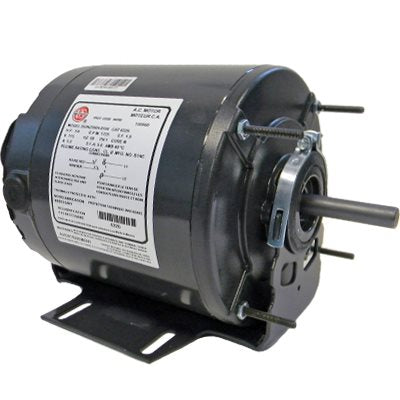

US motors Fan & Blower Motors (HVAC/R) 6326 - 1/4 HP - 115 V - 1725 RPM - Single phase

US motors Fan & Blower Motors (HVAC/R) 6326 - 1/4 HP - 115 V - 1725 RPM - Single phase

$419.00 CAD
$419.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 6326

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1725

Voltage : 115 V

Phase : Single

Frame : 56Z

Mounting : Resilient Base

  • Horsepower :1/4
  • Voltage :115
  • Amps :5.00
  • RPM :1725
  • Frequency :60 Hz
  • Length :7.87"
  • "C" Dim. :9.87"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2" x 2.00"
  • Type :Split Phase
  • Diameter :6-1/2"
  • Frame :56Z
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, Resilient Base
  • Weight (lbs.) :18
  • Reference : Bluffton 10600, Century 164339
  • Manufacturer Model # : S063SRH8134012B
