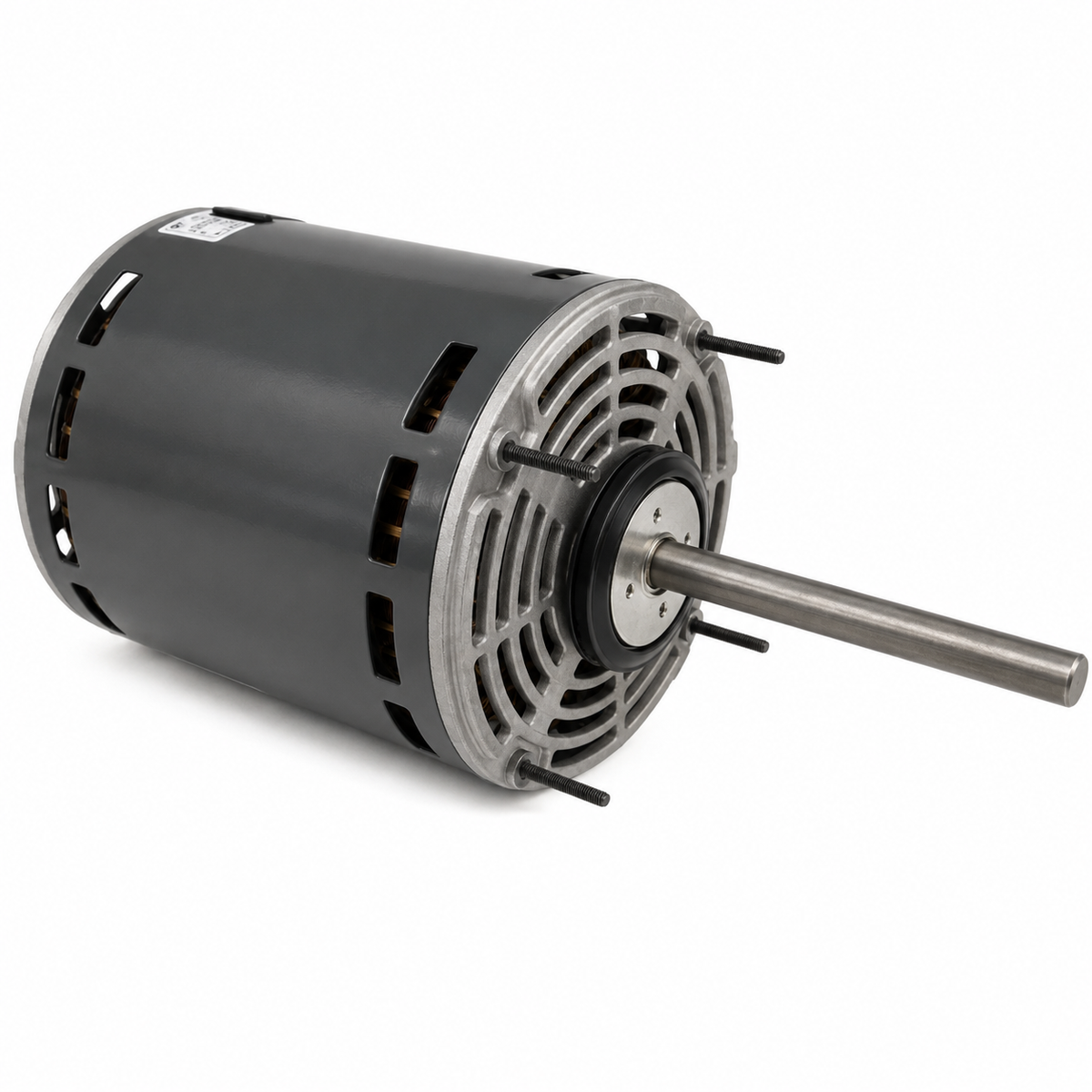

US Motors Fan & Blower Motors (HVAC/R) 5BD1106 - 1 HP - 575 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 5BD1106 - 1 HP - 575 V - 1075 RPM - Single phase

$398.00 CAD
$398.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 5BD1106

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1075

Voltage : 575 V

Phase : Single

Frame : 48

Mounting : Ring / Stud Mount

  • Horsepower :1
  • Voltage :575
  • Amps :2.40
  • RPM :1075
  • Frequency :60 Hz
  • Length :6-5/16”
  • Enclosure :Open
  • Shaft Dim. :1/2” x 5.00”
  • Type :Permanent Split Capacitor
  • Speeds :2
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Includes Resilient Rings, Extended Thru-Bolts on shaft end
  • Weight (lbs.) :22
  • Reference : A.O.Smith F48J44A45 F48N34Z01, A.O.Smith Stock No. 5BD1106, Emerson K55HXDVJ1275 K55HXJAA8954 K55HXSPK1360 K55HXWNJ1317, Fasco 7126-4699, General Electric 5KCP39SGL552S 5KCP39SFU729 5KCP39SGU398 5KCP39SGV287, Lennox 88C7601, Marathon 48A11O1655 48A11O1915, Trane X70671190-01 MOT10360 X70671752-010 X70671755-010, F1575DD, SA70126
