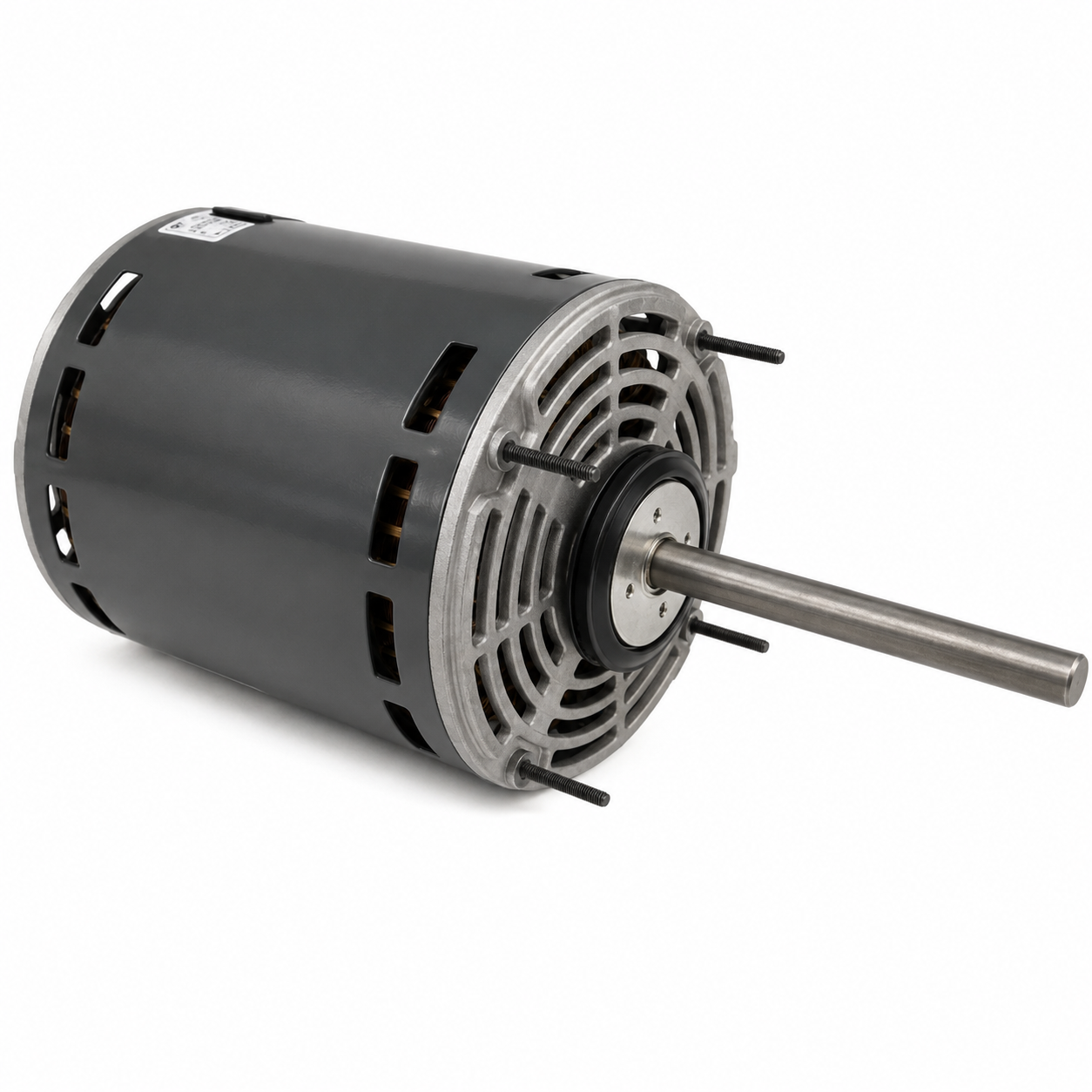

US motors Fan & Blower Motors (HVAC/R) 5BD1076 - 3/4 HP - 575 V - 1075 RPM - Single phase

US motors Fan & Blower Motors (HVAC/R) 5BD1076 - 3/4 HP - 575 V - 1075 RPM - Single phase

$319.00 CAD
$319.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 5BD1076

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1075

Voltage : 575 V

Phase : Single

Frame : 48

Mounting : Ring / Stud Mount

  • Horsepower :3/4
  • Voltage :575
  • Amps :2.30
  • RPM :1075
  • Frequency :60 Hz
  • Length :6-1/4”
  • Enclosure :Open
  • Shaft Dim. :1/2" x 5.00”
  • Type :P.S.C. Design
  • Speeds :2
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Includes Resilient Rings, Extended Thru-Bolts on shaft end
  • Weight (lbs.) :21
  • Reference : A.O.Smith F48A35A38 F48P64A50 F48T71A50, F34575DD, 50HJ900575, Emerson K55HXTZ8887 K55HXSPL1361 K55HXWNH1316, General Electric 5KCP39PGH109 5KCP39RGL956, Marathon 48A1101832, 88C7601, Trane X70671181017 X70671479-001, Universal Electric HE3L167, Lennox 024-24101-001, SA70125
