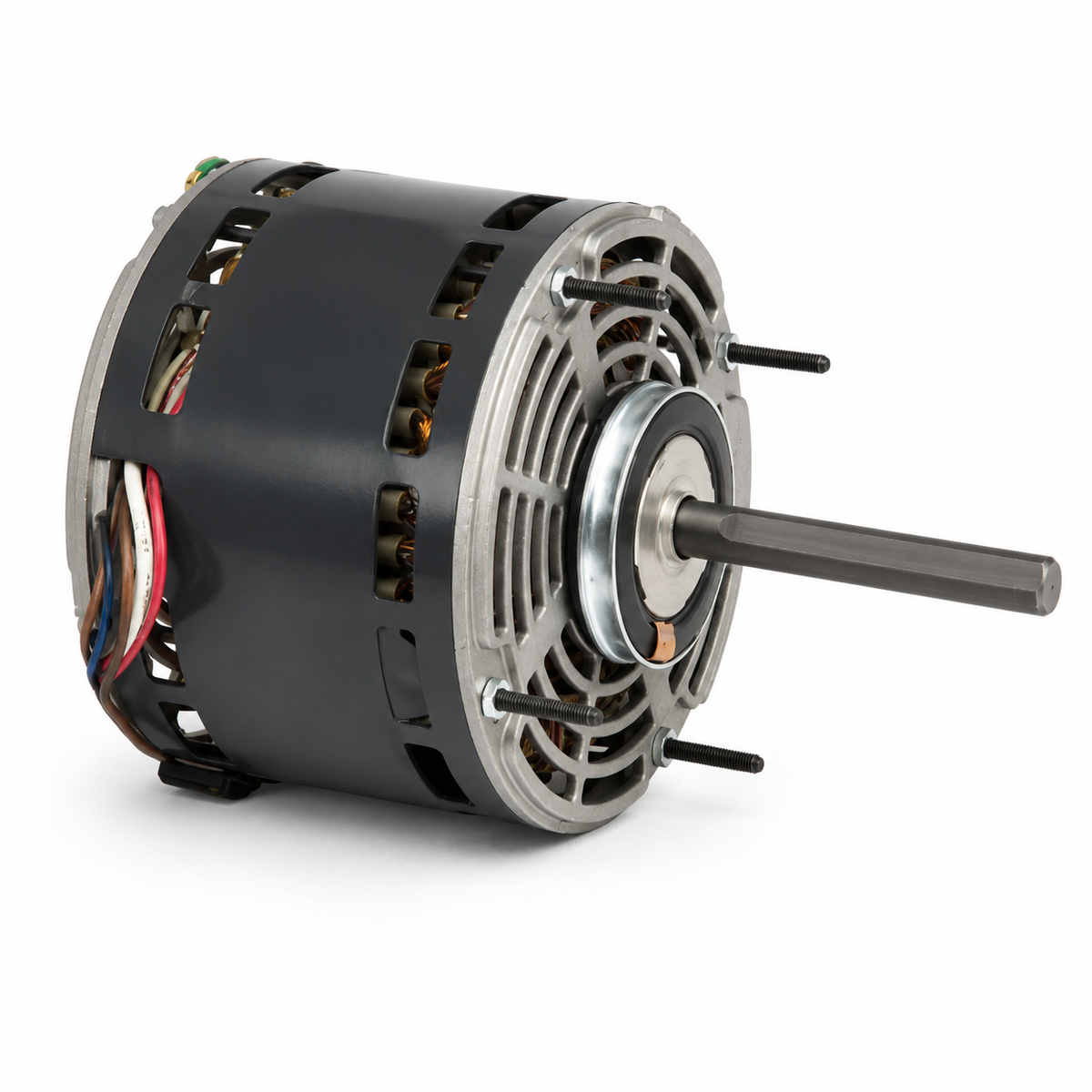

US Motors Fan & Blower Motors (HVAC/R) 5840 - 1/2 HP - 115 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 5840 - 1/2 HP - 115 V - 1075 RPM - Single phase

$275.00 CAD
$275.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 5840

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48YZ

Mounting : Ring / Stud Mount

  • Horsepower :1/2
  • Voltage :115
  • Amps :7.1
  • RPM :1075
  • Frequency :60 HZ
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" X 6"
  • Type :Permanent Split Capacitor
  • Speeds :4
  • Diameter :5.6"
  • Frame :48YZ
  • Bearings :BALL
  • Rotation :REV
  • Protector :AUTO
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :7.5 MFD @ 370 VOLT
  • Weight (lbs.) :18
  • Reference : Manufacturer Model  : K055KDE9448022B
