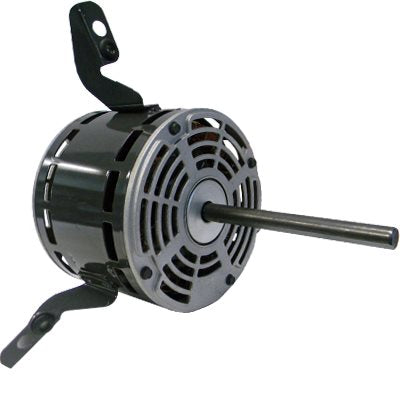

US Motors Fan & Blower Motors (HVAC/R) 3786 - 1/3 HP - 208/230 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 3786 - 1/3 HP - 208/230 V - 1075 RPM - Single phase

$272.00 CAD
$272.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 3786

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Flex Mount

  • Horsepower :1/3
  • Voltage :208-230
  • Amps :2.5
  • RPM :1075
  • Frequency :60 Hz
  • "C" Dim. :9.8"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" x 5"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Frame :48
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Thermally Protected
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :14
  • Reference : A.O.Smith Century 973 FM1036, Dayton 4M452, Fasco 7126-3220, General Electric 3786, General Electric 5KCP39GGF654 5KCP39JGD958 5KCP39JGP733 5KCP39MGM650, York 024-20254-001
