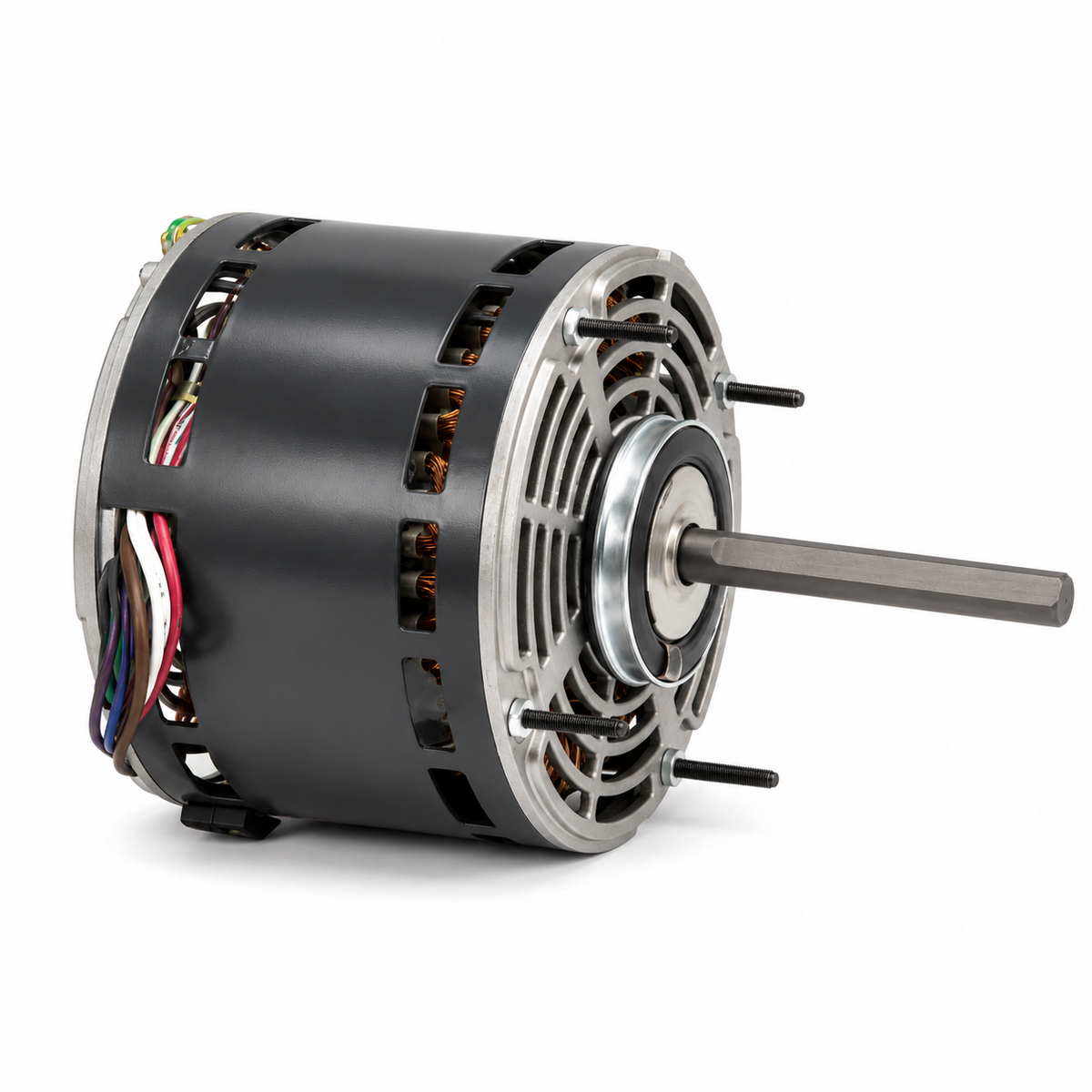

US Motors Fan & Blower Motors (HVAC/R) 3725 - 3/4 HP - 115 V - 1075 RPM - Single phase

• HP : 3/4
• Voltage : 115
• RPM : 1075
• Current (Amp) : 10.00
• Phase : 1
• Rotation : Counterclockwise Lead End
• Frame : 48Y
• Enclosure : Open Air Over
• Speeds : 5
• Protector : Automatic
• Ambient Temp : 40°C
• Service Factor : 1.00
• Shaft Dimensions : 0.50 in X 2.50 in
• Frequency : 60Hz
• Diameter : 5.5 in
• Frame Length : 8.90 in
• Bearings : Ball
• Capacitor Rating : 40-44
• Features : Class B Insulation, Belly Band Mount, Resilient Ring Mount, 43" Leads, 1/2" Diameter Shaft With Flat, Capacitor Required: 40 Mfd-370 Volts (Not Supplied with Motor)
• Manufacturer Model # : K055TMS9565011B
• Reference : A.O. Smith 48Z02A01 F48K72C42, Century 9405A, Emerson K55HXTMS9565 K55HXNNZ7057
