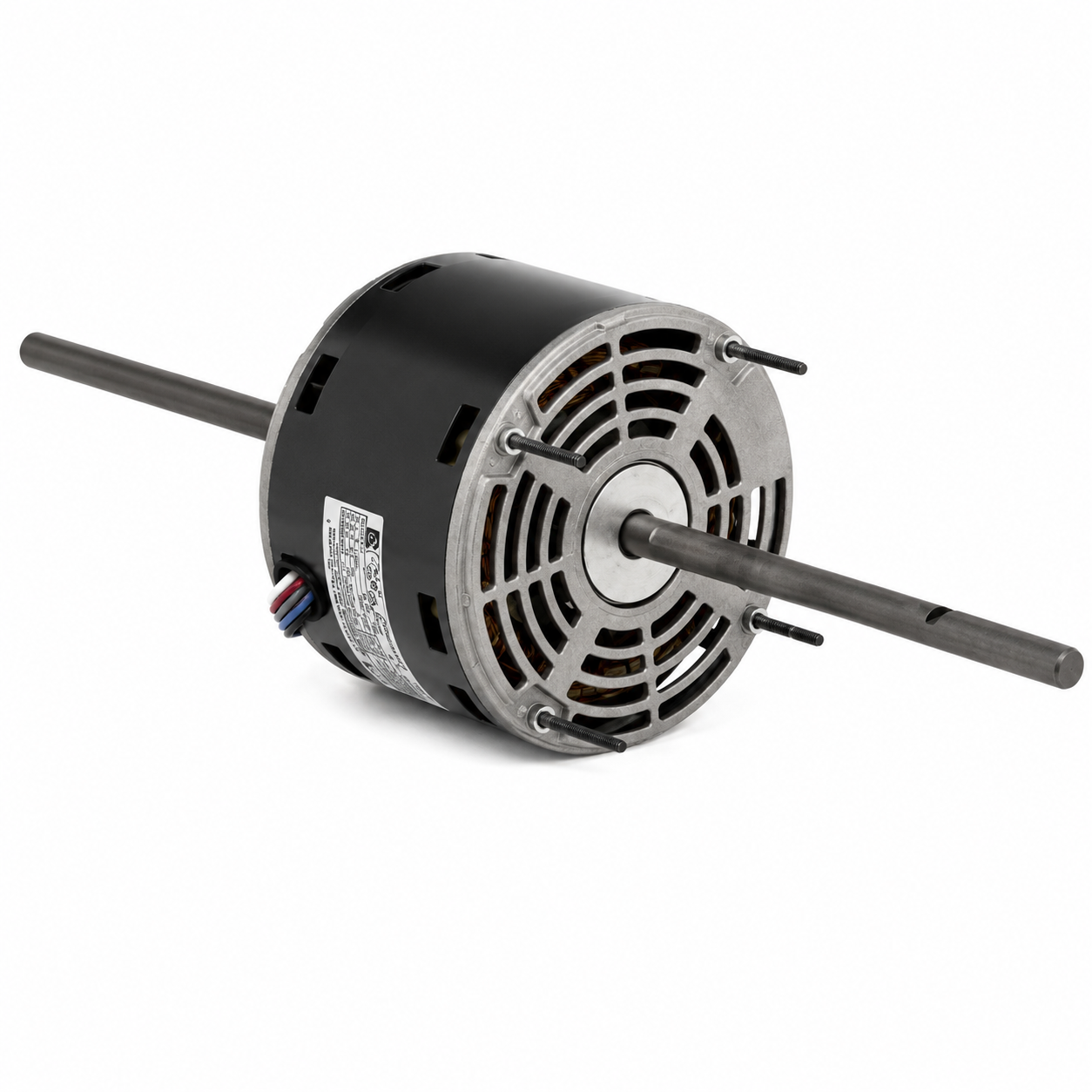

US Motors Fan & Blower Motors (HVAC/R) 1894 - 3/4 HP - 208/230 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1894 - 3/4 HP - 208/230 V - 1075 RPM - Single phase

$502.00 CAD
$502.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1894

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Hub / Stud Mount

  • Horsepower :3/4
  • Voltage :208-230
  • Amps :5.00
  • RPM :1075
  • Frequency :60 Hz
  • Length :5-9/16"
  • "C" Dim. :20-5/8"
  • Enclosure :Open
  • Shaft Dim. :6-1/4" x 1/2" x 6-1/4"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Self-Aligning Bearing
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Multi-Speed, Hub or Stud Mount, Without Capacitor & Mounting Kit, Capacitor Included, No Base, Class 'B' Insulation
  • Weight (lbs.) :18
