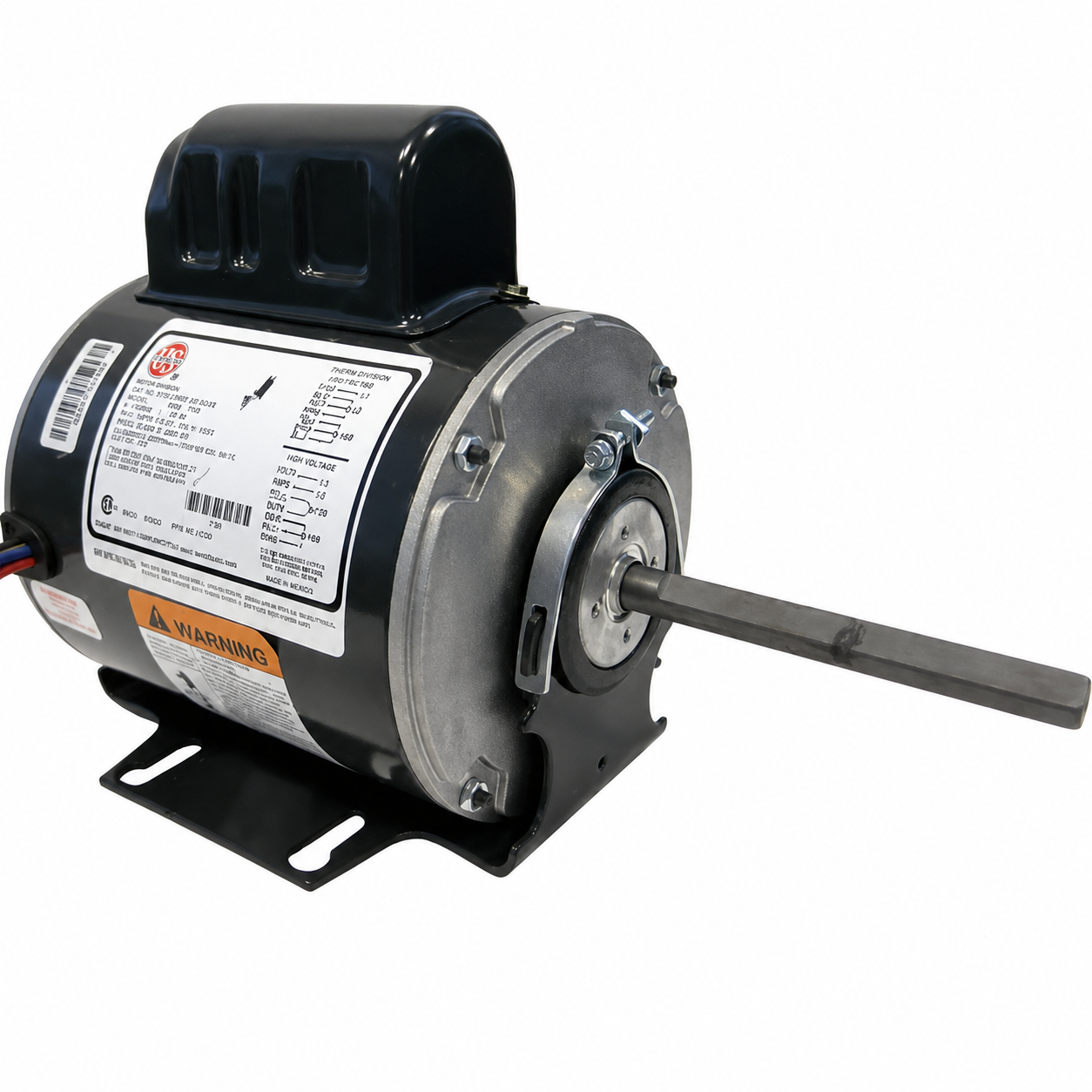

US Motors Fan & Blower Motors (HVAC/R) 1195 - 1/2 HP - 115/230 V - 1140 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1195 - 1/2 HP - 115/230 V - 1140 RPM - Single phase

$412.00 CAD
$412.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1195

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1140

Voltage : 115/230 V

Phase : Single

Frame : 48

Mounting : Resilient Base

  • Horsepower :1/2
  • Voltage :115/230
  • Amps :5.80/2.80
  • RPM :1140
  • Frequency :60 Hz
  • Enclosure :Totally Enclosed, Air Over
  • Shaft Dim. :1/2" x 4.50"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Phase :1
  • Feature(s) :Extended Thru-Bolts, Resilient Base
  • Weight (lbs.) :17
  • Reference : A.O. Smith 733, Century 733A, Emerson K55HXSND1195, Leeson M099262, Marathon 48A11T192, U.S. Motors K055SND1195012B, F48Y59A01, 152665, C749, D817, Universal Electric HF3L069 HF3W023, SA70447
