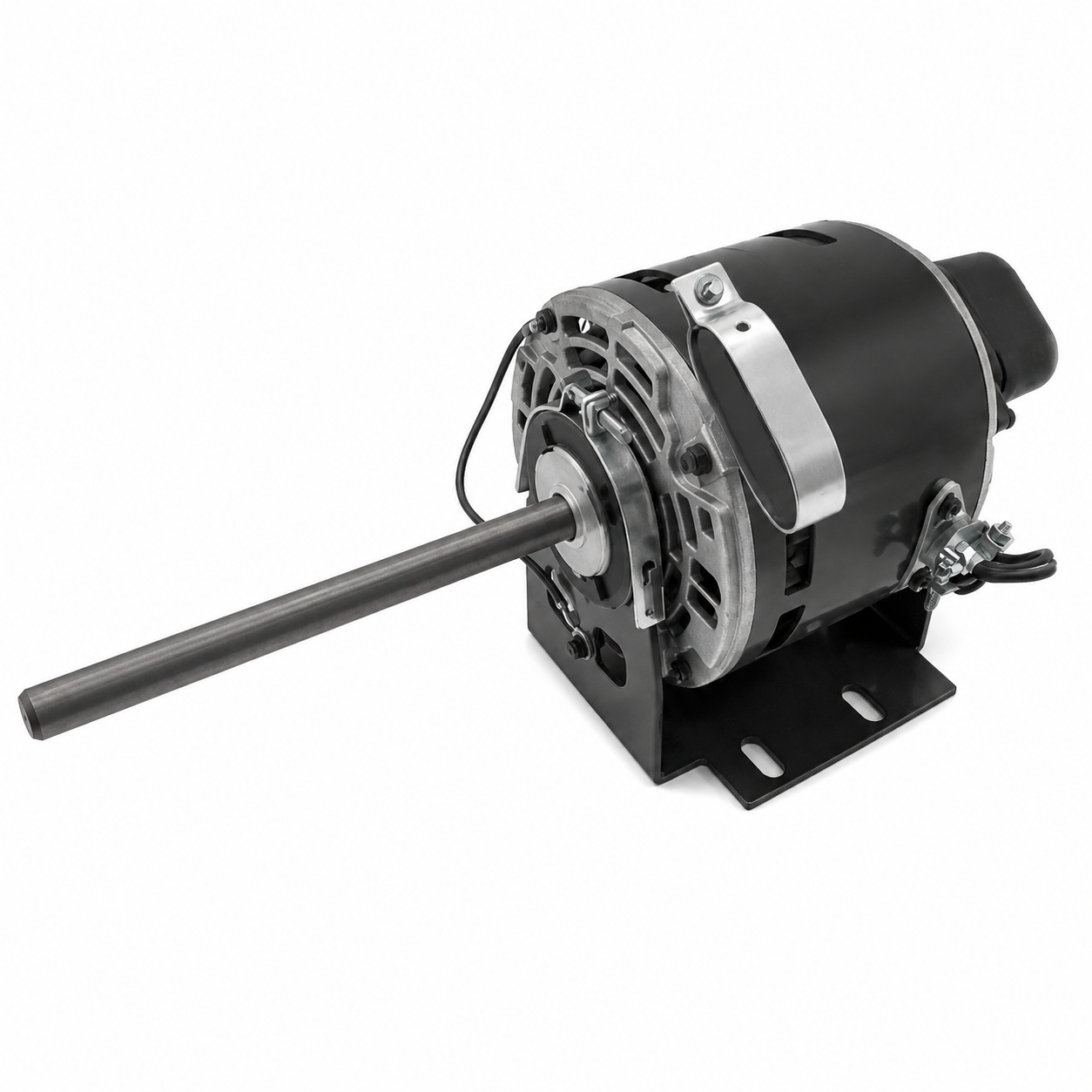

US Motors Fan & Blower Motors (HVAC/R) 1175 - 1/20 HP - 115 V - 1100 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1175 - 1/20 HP - 115 V - 1100 RPM - Single phase

$269.00 CAD
$269.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1175

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 1100

Voltage : 115 V

Phase : Single

Frame : 42Y

Mounting : Resilient Base

  • Horsepower :1/20
  • Voltage :115
  • Amps :1.0
  • RPM :1100
  • Frequency :60 Hz
  • "C" Dim. :14.452"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" X 9.30"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5"
  • Frame :42Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5 mfd @ 370V (included)
  • Weight (lbs.) :7.5
  • Reference : Emerson K048DSJ0221012B K48HXDSJ0221, A.O. Smith Century 9608 9608A
