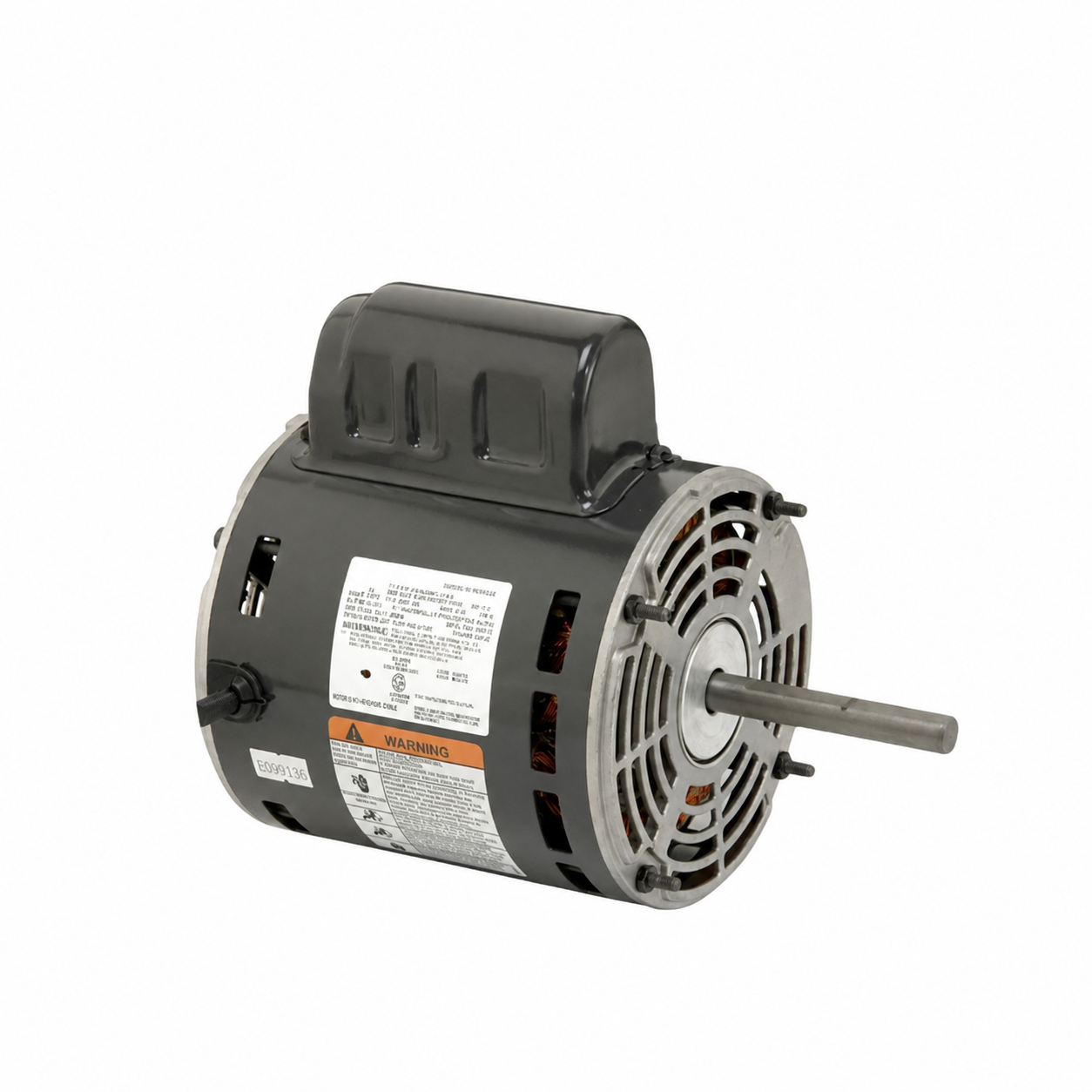

US Motors Fan & Blower Motors (HVAC/R) 1146 - 1/6 HP - 115 V - 1100 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1146 - 1/6 HP - 115 V - 1100 RPM - Single phase

$360.00 CAD
$360.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1146

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 1100

Voltage : 115 V

Phase : Single

Frame : 48YZ

Mounting : Stud Mount

  • Horsepower :1/6
  • Voltage :115
  • Amps :2.20
  • RPM :1100
  • Frequency :60 Hz
  • "C" Dim. :7.36"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" x 3.00"
  • Type :P.S.C. Design
  • Diameter :5.5"
  • Frame :48YZ
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Ambient Temp. :40°C
  • Capacitor Rating :Included
  • Feature(s) :Class 'B' Insulation, Continuous Duty, Open Thru-Bolts
  • Weight (lbs.) :10
  • Reference : eMotorteK No. C07E4A, SA70138
