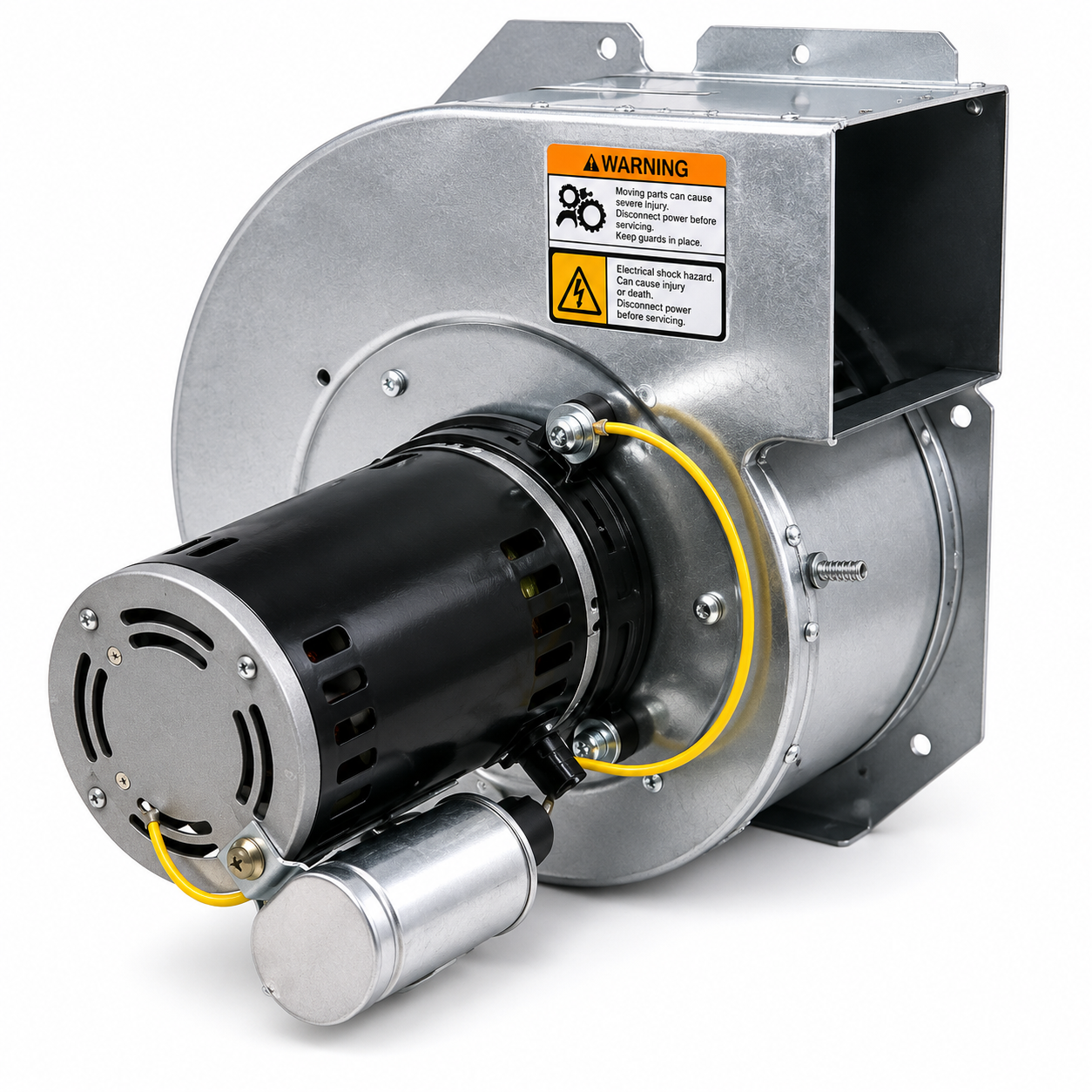

US Motors Draft Inducer / Vent Motor N11969 - 1/8 HP - 115 V - 3450 RPM - Single phase

US Motors Draft Inducer / Vent Motor N11969 - 1/8 HP - 115 V - 3450 RPM - Single phase

$298.00 CAD
$298.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : N11969

Brand : US Motors

HVAC : Draft Inducer / Vent Motor

Horsepower : 1/8 HP

RPM : 3450

Voltage : 115 V

Phase : Single

Mounting : Bracket Mount

  • HP : 1/8
  • Voltage : 115
  • RPM : 3450
  • Current (Amp) : 2.00
  • Phase : 1
  • Rotation : Counterclockwise Shaft End
  • Enclosure : Open Air Over
  • Speeds : 2
  • Protector : Automatic
  • Ambient Temp : 40°C
  • Service Factor : 1.00
  • Frequency : 60Hz
  • Bearings : Ball
  • Capacitor Rating : Supplied With Motor
  • Features: Class B Insulation, Square Flange Output, 97CFM @ Free Air, Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
  • Weight: 10lbs
  • Reference : 11969, 7062-5423, 70625423, FLACPSC85-271-B, 15136, PSC82A-16104-12-01
