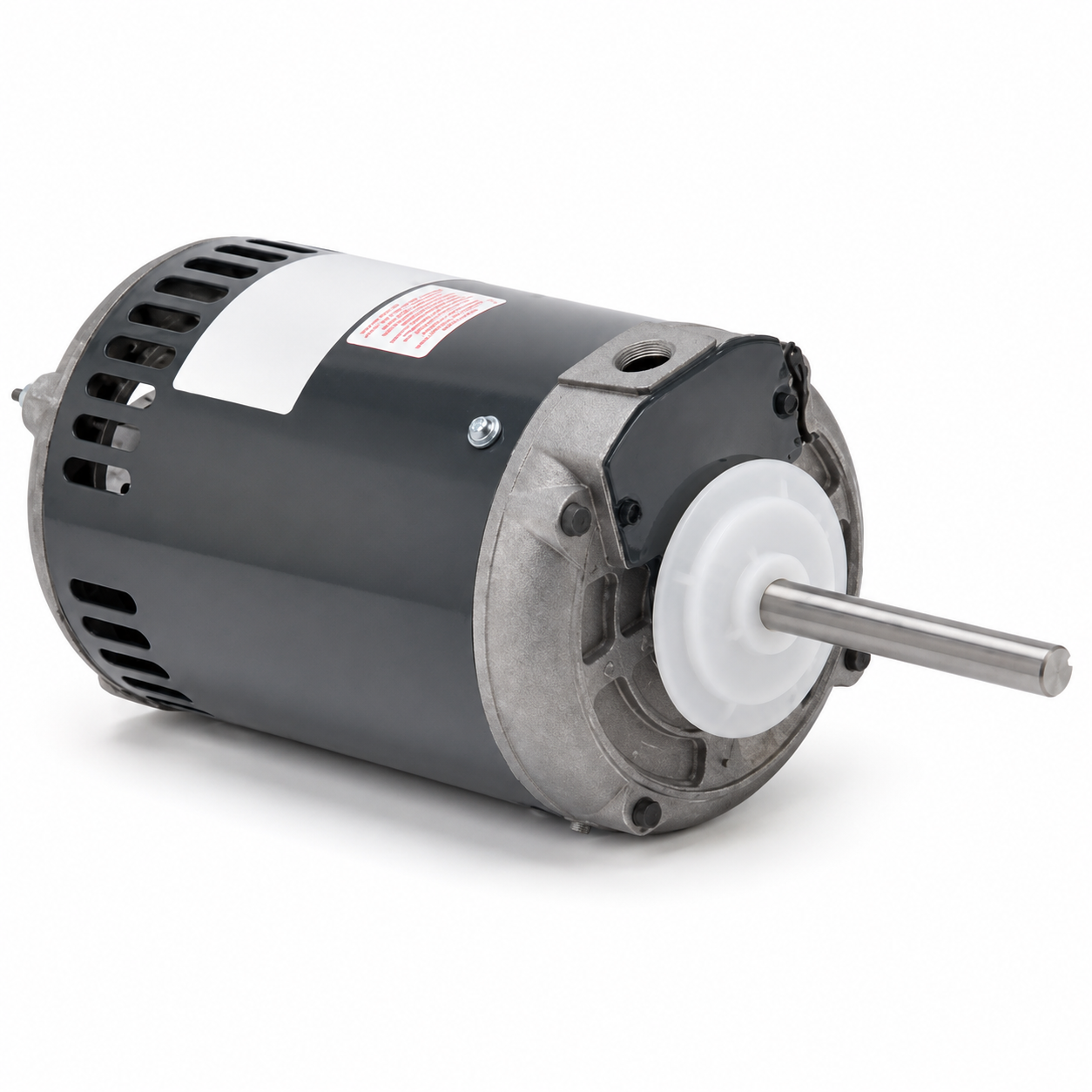

US Motors Condenser Fan Motors (HVAC/R) EM-4934 - 1.5 HP - 575 V - 1140 RPM - Three phase

US Motors Condenser Fan Motors (HVAC/R) EM-4934 - 1.5 HP - 575 V - 1140 RPM - Three phase

$630.00 CAD
$630.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM-4934

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1.5 HP

RPM : 1140

Voltage : 575 V

Phase : Single

Frame : 56Y

  • Horsepower :1-1/2
  • Voltage :575
  • Amps :2.30
  • RPM :1140
  • Frequency :60 Hz
  • Enclosure :Open Opposite Shaft End
  • Shaft Dim. :5/8" x 6.00"
  • Type :Three Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Feature(s) :Class 'B' Insulation
  • Weight (lbs.) :41
