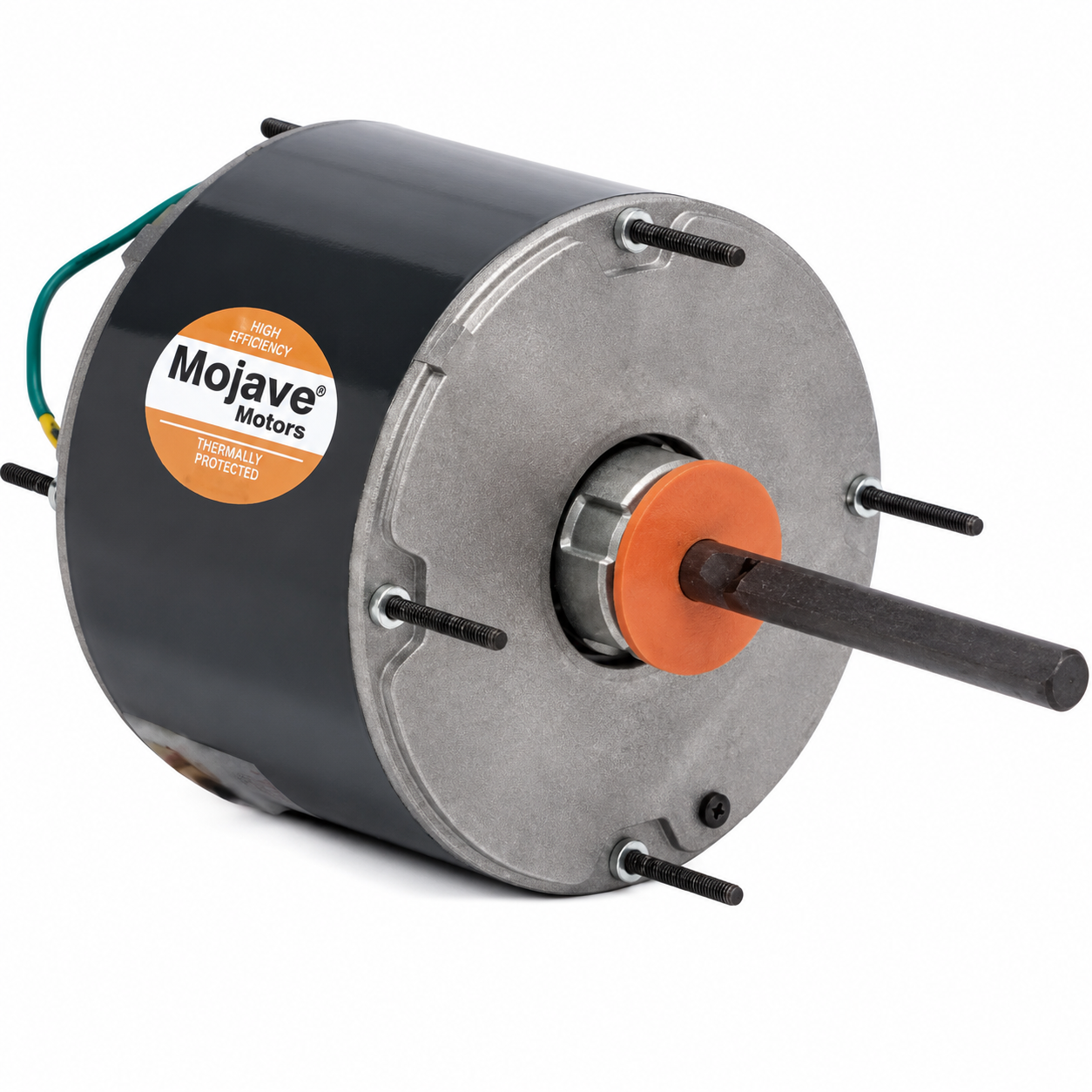

US Motors Condenser Fan Motors (HVAC/R) 8670 - 1/3 HP - 208/230 V - 1075 RPM - Single pjase

• HP : 1/3
• Voltage : 208-230
• RPM : 1075
• Current (Amp) : 2.20
• Phase : 1
• Rotation : Reversible
• Frame : 48Y
• Enclosure : Totally Enclosed Air Over
• Speeds : 2
• Protector : Automatic
• Ambient Temp : 40°C
• CFM : N/A
• Service Factor : 1.00
• Shaft Dimensions : 0.50 in X 6.00 in
• Frequency : 60Hz
• Diameter : 5.5 in
• Frame Length : 11.36 in
• Bearings : Self-Align
• Capacitor Rating : 7.5-370
• Features : Class B Insulation, Extended Bolts Shaft End, Belly Band Mount, 30" Leads, 1/2" Diameter Shaft With Flat, Capacitor Required : 7.5 Mfd-370 Volts (Not Supplied with Motor)

  Reference : KA55SGF8670802B
