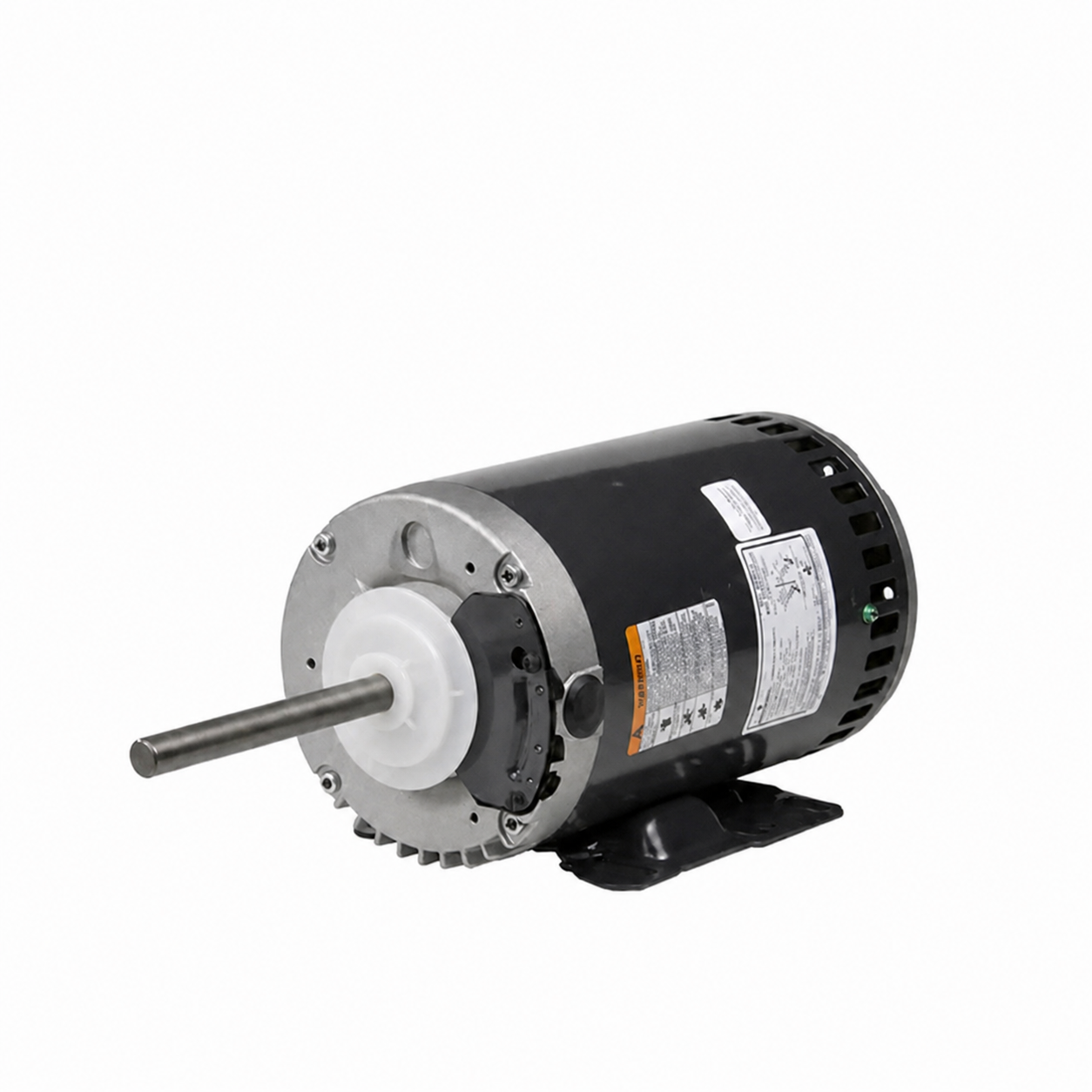

US Motors Condenser Fan Motors (HVAC/R) 4940 - 1/2 HP - 575 V - 1140 RPM - Three phase

US Motors Condenser Fan Motors (HVAC/R) 4940 - 1/2 HP - 575 V - 1140 RPM - Three phase

$676.00 CAD
$676.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 4940

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1140

Voltage : 575 V

Phase : Three

Frame : 56Y

Mounting : Rigid Base

  • Horsepower :1/2
  • Voltage :575
  • Amps :0.85
  • RPM :1140
  • Frequency :60 Hz
  • "C" Dim. :13.39"
  • Enclosure :TEAO
  • Shaft Dim. :5/8" x 3.30"
  • Type :Three Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :60°C
  • Feature(s) :Round Body
  • Weight (lbs.) :33
  • Reference : Century 177400, Century Stock No. H977 H977V1, Emerson P63YABA1134 P63YGEC4940, Rotom T2529, SA70180
