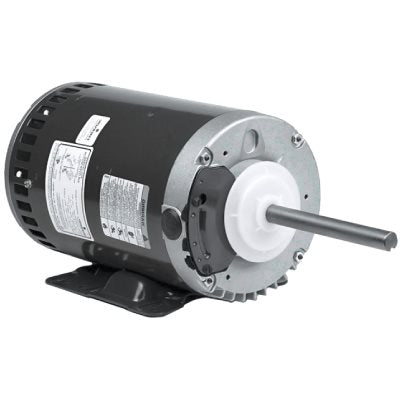

US Motors Condenser Fan Motors (HVAC/R) 4936 - 1 HP - 575 V - 1140 RPM - Three phase

US Motors Condenser Fan Motors (HVAC/R) 4936 - 1 HP - 575 V - 1140 RPM - Three phase

$896.00 CAD
$896.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 4936

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1140

Voltage : 575 V

Phase : Three

Frame : 56Y

Mounting : Rigid Base

  • Horsepower :1
  • Voltage :575
  • Amps :1.50
  • RPM :1140
  • Frequency :60 Hz
  • "C" Dim. :14.50"
  • Enclosure :Open Opposite Shaft-End
  • Shaft Dim. :5/8" x 3.20"
  • Type :Three Phase
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Phase :3
  • Ambient Temp. :60°C
  • Feature(s) :Rigid Base
  • Weight (lbs.) :23
  • Reference : Century Stock No. H964, Emerson P63YGEE4942, Franklin 1331007485, Marathon 56T11T5516, York 024-24121-702, SA70369
