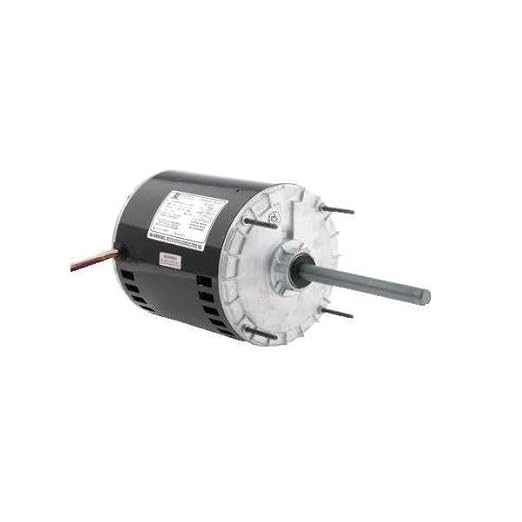

US Motors Condenser Fan Motors (HVAC/R) 2204 - 1.5 HP - 230/460 V - 1075 RPM - Single phase

US Motors Condenser Fan Motors (HVAC/R) 2204 - 1.5 HP - 230/460 V - 1075 RPM - Single phase

$688.00 CAD
$688.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 2204

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1.5 HP

RPM : 1075

Voltage : 230/460 V

Phase : Single

Frame : 6.5

Mounting : Stud Mount

• HP: 1.5
• Voltage: 230 / 460
• RPM: 1075
• Current (Amp): 8.50-7.60 / 3.80
• Phase: 1
• Rotation: Reversible
• Frame: 56Z
• Enclosure: Totally Enclosed Air Over
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 60°C
• Service Factor: 1.00
• Shaft Dimensions: 0.625 in X 6.00 in
• Frequency: 60Hz
• Diameter: 6.5 in
• Frame Length: 17.38 in
• Bearings: Ball• Capacitor Rating: 20Mfd-370/440Vac

• Features: class b insulation, extended bolts shaft end, belly band mount, resilient ring mount, 5/8" diameter shaft with flat and keyed, capacitor required: 20 mfd-370 volts (not supplied with motor)
• Reference : Century C771
