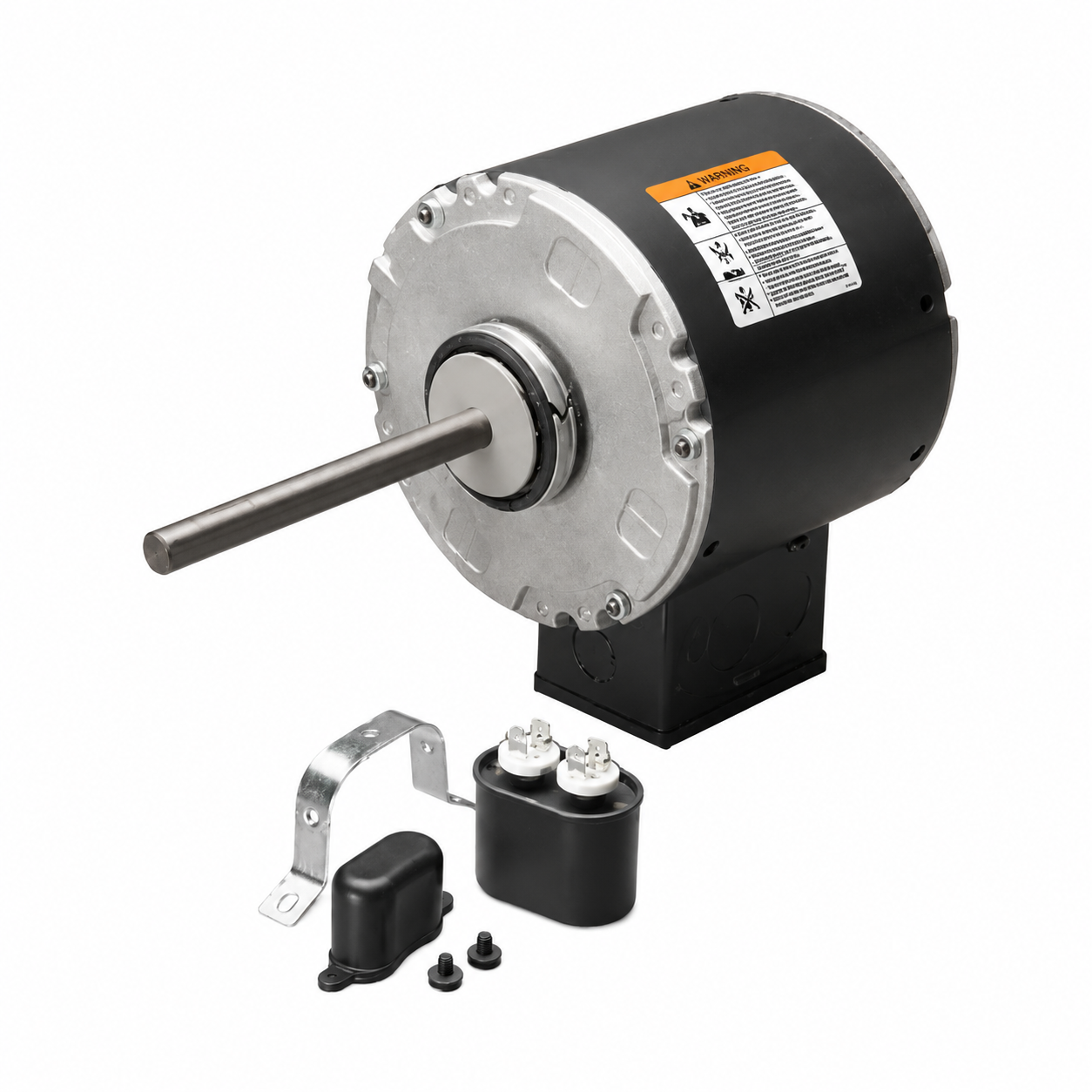

US Motors Condenser Fan Motors (HVAC/R) 2201 - 1/2 HP - 230/460 V - 1075 RPM - Single phase

• HP : 1/2
• Voltage : 208-230 / 460
• RPM : 1075
• Current (Amp) : 3.20-3.10 / 1.60
• Phase : 1
• Rotation : Reversible
• Frame : 48
• Enclosure : Totally Enclosed Non Ventilated
• Speeds : 1
• Protector : Automatic
• Ambient Temp : 60°C
• Service Factor : 1.00
• Shaft Dimensions : 0.50 in X 5.00 in
• Frequency : 60Hz
• Diameter : 5.5 in
• Frame Length : 12.80 in
• Bearings : Ball
• Capacitor Rating : 10-370
• Features : Class B Insulation, Resilient Ring Mount, Belly Band Mount, 1/2" Diameter Shaft With Flat, Capacitor Required : 10 Mfd-370 Volts (Not Supplied with Motor)
• Manufacturer Model  : K055SYC7992012B
