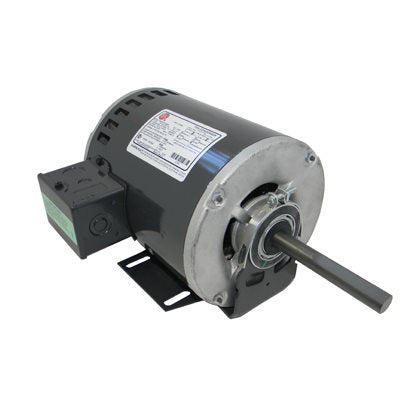

US Motors Condenser Fan Motors (HVAC/R) 2193 - 3/4 HP - 230/460 V - 1100 RPM - Single phase

US Motors Condenser Fan Motors (HVAC/R) 2193 - 3/4 HP - 230/460 V - 1100 RPM - Single phase

$997.00 CAD
$997.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 2193

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1100

Voltage : 230/460 V

Phase : Single

Frame : 56Y

Mounting : Resilient Base

  • Horsepower :3/4
  • Voltage :208-230/460
  • Amps :4.8/2.5
  • RPM :920/1100
  • "C" Dim. :13.01"
  • Enclosure :Open Opposite Shaft End
  • Shaft Dim. :5/8" X 4 1/8"
  • Type :Permanent Split Capacitor
  • Speeds :2
  • Diameter :6 5/16"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Capacitor Rating :30MFD-440V
  • Feature(s) :Resilient Base, Dual Voltage, Class 'B' Insulation
  • Weight (lbs.) :32
  • Reference : Century C662 C663
  • Manufacturer Model  : K063TPF4856011B
