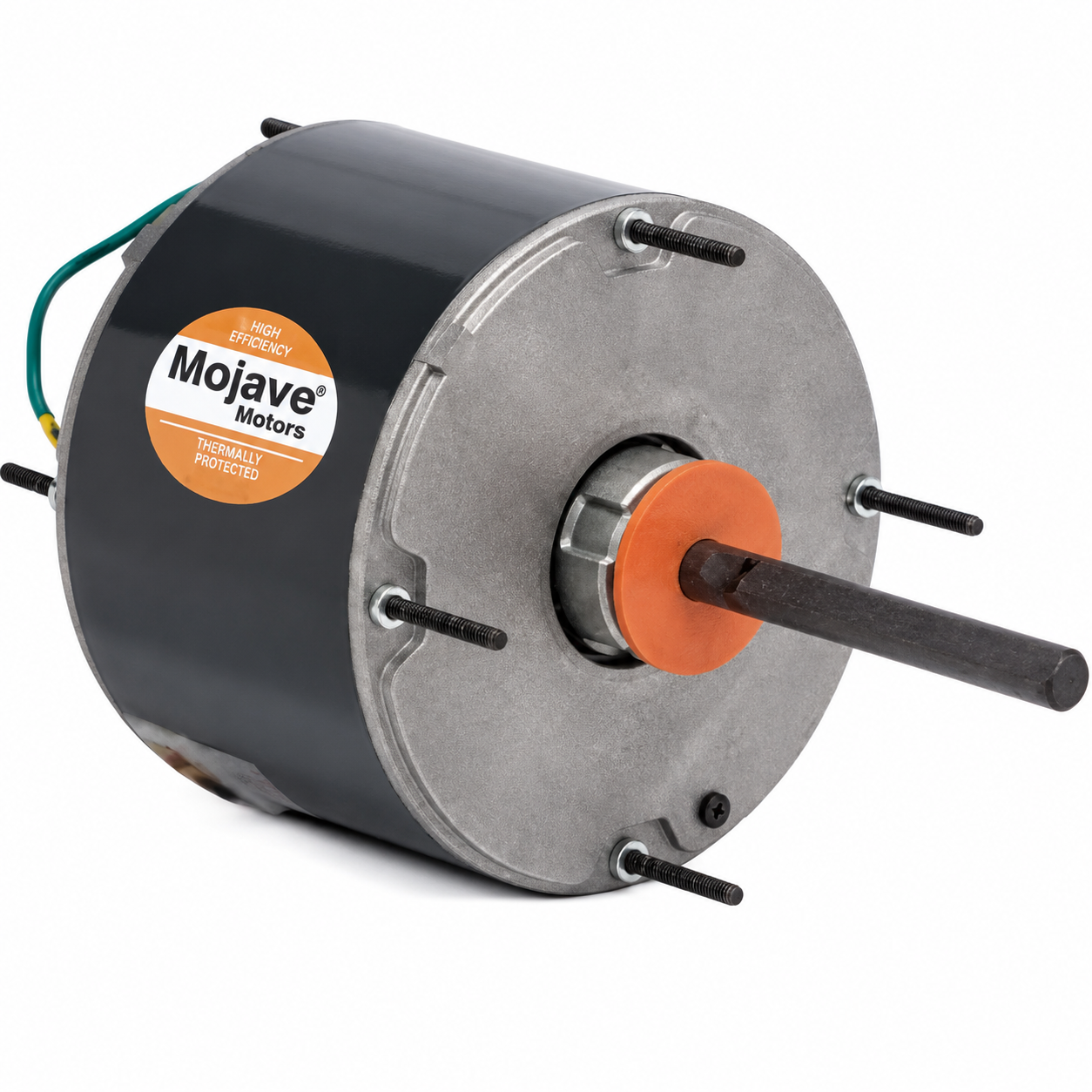

US Motors Condenser Fan Motors (HVAC/R) 1881 - 1/3 HP - 825 RPM - 460 V - Single phase

US Motors Condenser Fan Motors (HVAC/R) 1881 - 1/3 HP - 825 RPM - 460 V - Single phase

$376.00 CAD
$376.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1881

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 825

Voltage : 460 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Horsepower :1/3
  • Voltage :460
  • Amps :1.00
  • RPM :825
  • Frequency :60 Hz
  • Length :5-5/8”
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2” x 6.00”
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Weight (lbs.) :17
  • Reference : Model # : K055TED8579012B, General Electric 3209
