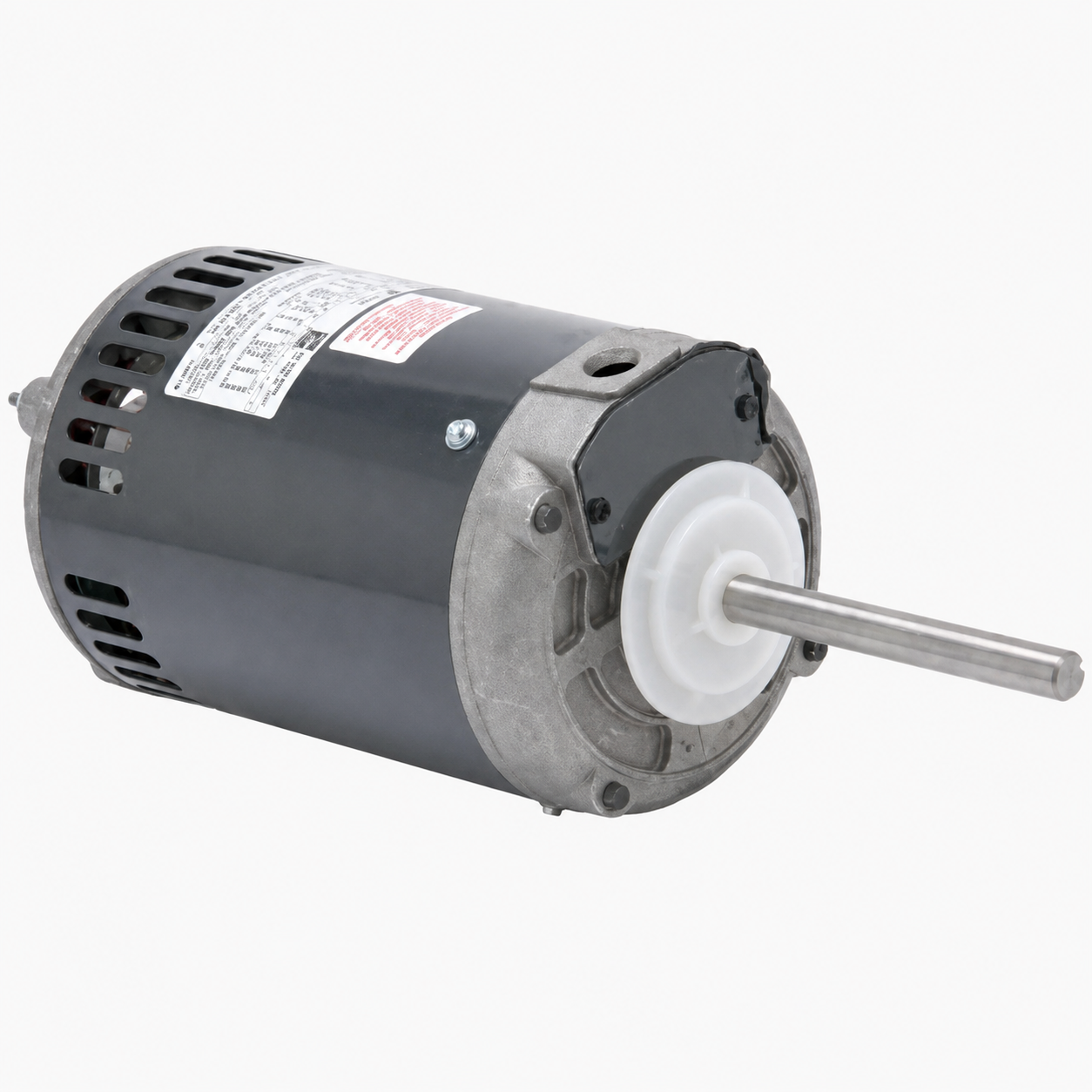

US Motors Condenser Fan Motors (HVAC/R) 1828H - 1 HP - 208-230/460 V - 850 RPM - Three phase

US Motors Condenser Fan Motors (HVAC/R) 1828H - 1 HP - 208-230/460 V - 850 RPM - Three phase

$800.00 CAD
$800.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1828H

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1 HP

RPM : 850

Voltage : 208-230/460 V

Phase : Three

Frame : 56Y

Mounting : Belly Band Mount

  • Horsepower :1
  • Voltage :208-230/460
  • Amps :5.00/2.50
  • RPM :850
  • Frequency :60 Hz
  • Enclosure :Open Opposite Shaft-End
  • Shaft Dim. :5/8” x 6.00”
  • Type :Three Phase
  • Speeds :1
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :70°C
  • References: Century H686, Emerson P63YABY1158, General Electric K1482, Marathon Stock No. X507, M0036-2
  • Feature(s) :Round Body
  • Weight (lbs.) :33
  • Reference : Century H686, Emerson P63YABY1158, General Electric K1482, Marathon Stock No. X507, M0036-2
