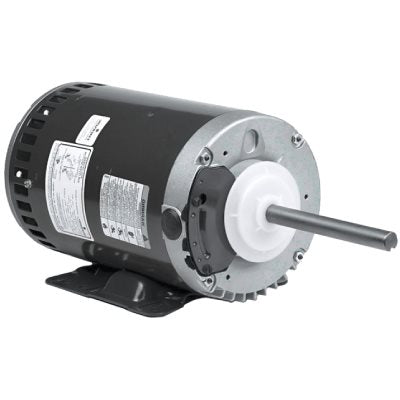

US Motors Condenser Fan Motors (HVAC/R) 1820H - 1 HP - 208-230/460 V - 1140 RPM - Single phase

US Motors Condenser Fan Motors (HVAC/R) 1820H - 1 HP - 208-230/460 V - 1140 RPM - Single phase

$852.00 CAD
$852.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1820H

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1140

Voltage : 208-230/460 V

Phase : Single

Frame : 56YZ

Mounting : Rigid Base

  • Horsepower :1
  • Voltage :208-230/460
  • Amps :4.20/2.10
  • RPM :1140
  • Frequency :60 Hz
  • "C" Dim. :14.80"
  • Enclosure :Open Opposite Shaft-End
  • Shaft Dim. :5/8" x 6.00"
  • Type :Three Phase
  • Diameter :6-1/2"
  • Frame :56YZ
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Phase :3
  • Ambient Temp. :70°C
  • Condenser Fan Motors (HVAC/R)
  • Feature(s) :Rigid Base
  • Weight (lbs.) :27
  • Reference : Century H685V1
