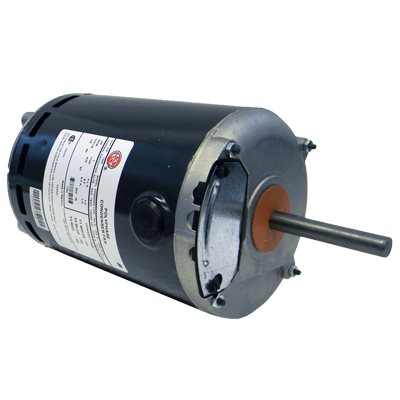

US Motors Condenser Fan Motors (HVAC/R) 1266 - 1 HP - 575 V - 1100 RPM - Three phase

US Motors Condenser Fan Motors (HVAC/R) 1266 - 1 HP - 575 V - 1100 RPM - Three phase

$524.00 CAD
$524.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1266

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1100

Voltage : 575 V

Phase : Three

Frame : 48Y

Mounting : Belly Band Mount

  • Horsepower :1
  • Voltage :575
  • Amps :1.4
  • RPM :1100
  • Frequency :60 Hz
  • Length :7-1/2”
  • "C" Dim. :12"
  • Enclosure :Open
  • Shaft Dim. :1/2” x 2-3/4”
  • Type :Three Phase
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Y
  • Efficiency :78.0%
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, No Base
  • Weight (lbs.) :20
  • Reference : A.O. Smith P4BA91A01 P48A91A01, Century 9428 9428A 142935, Emerson P55ZZDED1492, Marathon 48T11D168 48T11O168, OmniDrive SS9428 248-482/60, Universal Electric HM3T007 HM3T010
