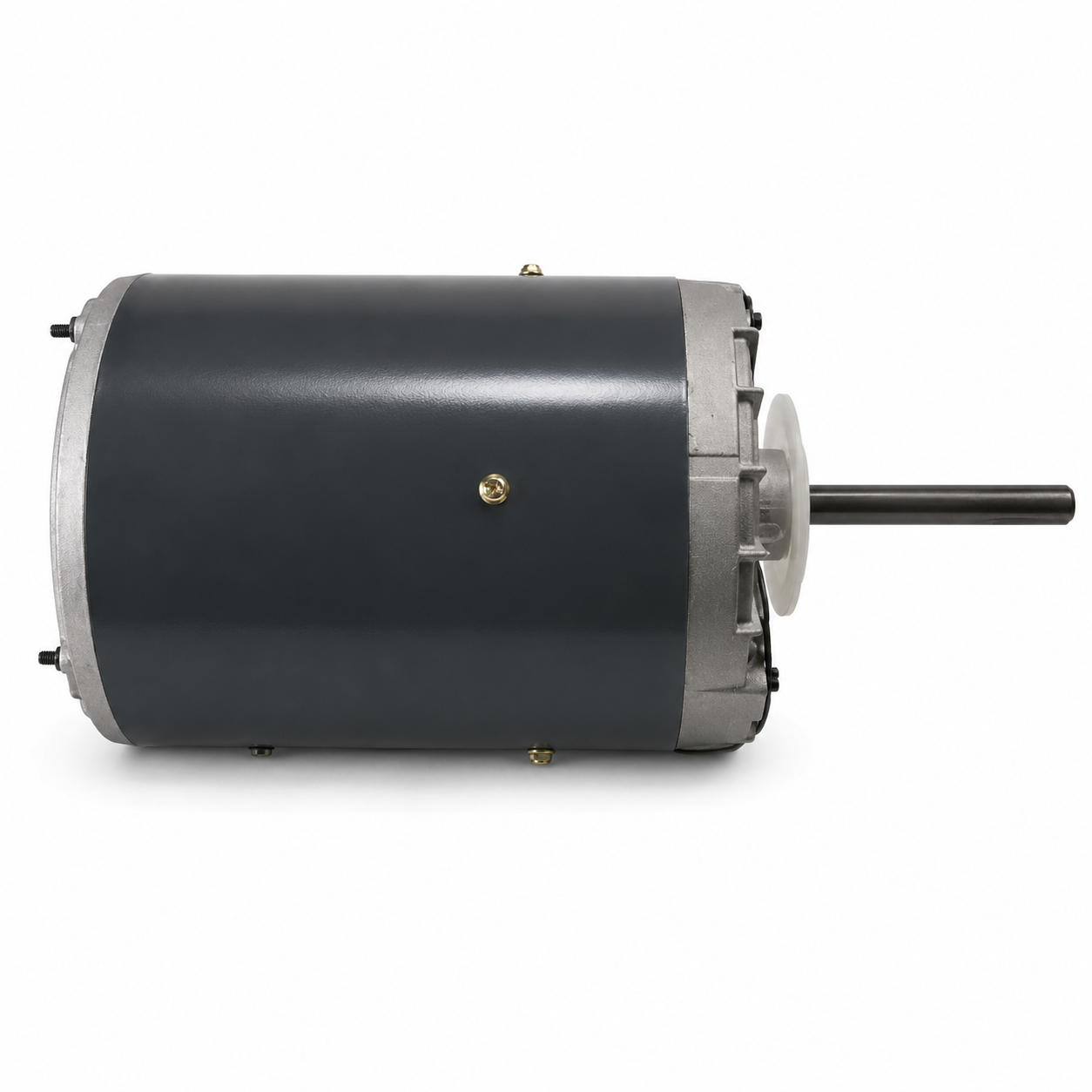

US Motors Condenser Fan Motors (HVAC/R) 1158 - 1 HP - 575 V - 1140 RPM - Three phase

US Motors Condenser Fan Motors (HVAC/R) 1158 - 1 HP - 575 V - 1140 RPM - Three phase

$798.00 CAD
$798.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1158

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1140

Voltage : 575 V

Phase : Three

Frame : 48Y

Mounting : Belly Band Mount

  • Horsepower :1
  • Voltage :575
  • Amps :1.40
  • RPM :1140
  • Frequency :60 Hz
  • Length :7-5/8"
  • Enclosure :Open Lead End
  • Shaft Dim. :5/8" x 5-1/2"
  • Type :Three Phase
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :60°C
  • Feature(s) :Class 'F' Insulation, C-Box & Canopy Included
  • Weight (lbs.) :21.4
  • Reference : A.O. Smith P48K6A4 P48K6A6 P48ST6V2 P48ST6V2A1, Carrier HD46VL576, Century 5FC3106, Copeland 050-0169-00 050-0169-01, Marathon 48T11011005, OmniDrive SS3106, Rotom T1536, R3443A312
